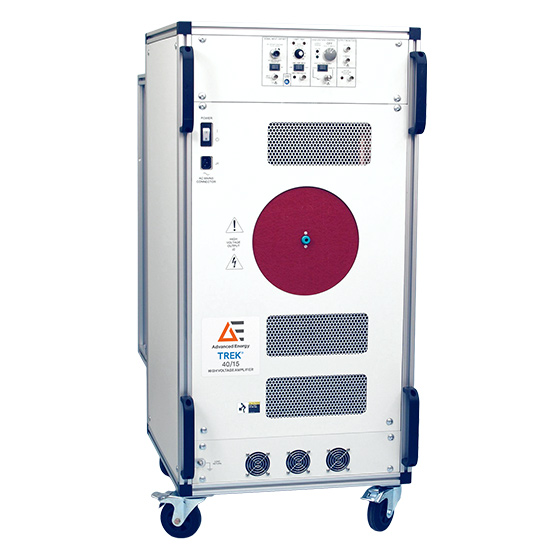

Trek 40/15 Non-Inverting High Voltage Amplifier

Trek 40/15 Non-Inverting High Voltage Amplifier Description：

Datasheet

The DC-stable Trek 40/15 high voltage power amplifier features an all-solid-state design, non-inverting configuration, and a fixed gain of 4000 V/V. It is protected against overvoltage and overcurrent conditions that can be generated by active loads or output short circuits to the ground. Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or use as feedback signals in a closed-loop system.

Features

Graduated one-turn potentiometer can be used to optimize the AC response for various load parameters

Current limit/trip status indicator and connector

NIST-traceable calibration certificate provided with each unit

DC-stable for programmable supply applications

Local and remote high voltage turn on or off capabilities

Benefits

Take advantage of low-output noise and ultra-accurate outputs

Benefit from nearly maintenance-free operation and solid-state design

Enable high accuracy thanks to a closed-loop system

Drive capacitive loads via a four-quadrant output

Safeguard equipment with short-circuit protection
