PIEZO VELOCITY SENSORS

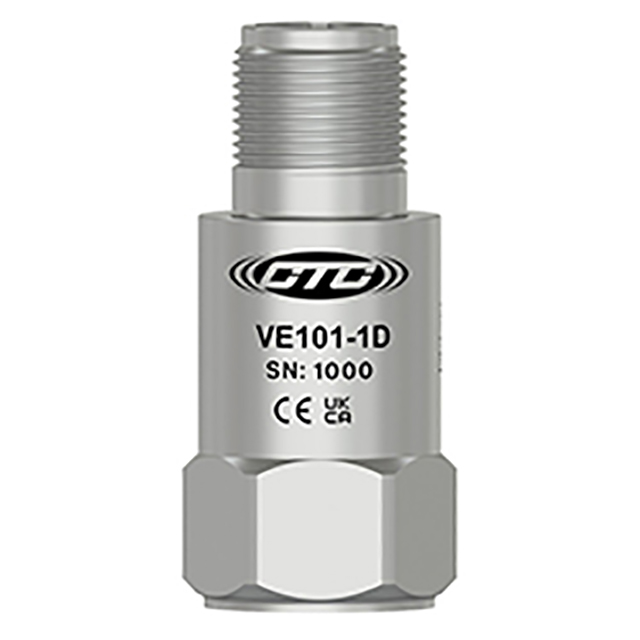

VE101Datasheet

Piezo Velocity Sensor, Top Exit 2 Pin Connector, 100 mV/in/sec, ±10%

90-720,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

100 mV/in/sec (4 mV/mm/sec) Sensitivity

1,5 - 12000 Hz (90 - 720,000 CPM) Frequency Response

VE102Datasheet

Piezo Velocity Sensor, Side Exit 2 Pin Connector, 100 mV/in/sec, ±10%

90-420,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

100 mV/in/sec (4 mV/mm/sec) Sensitivity

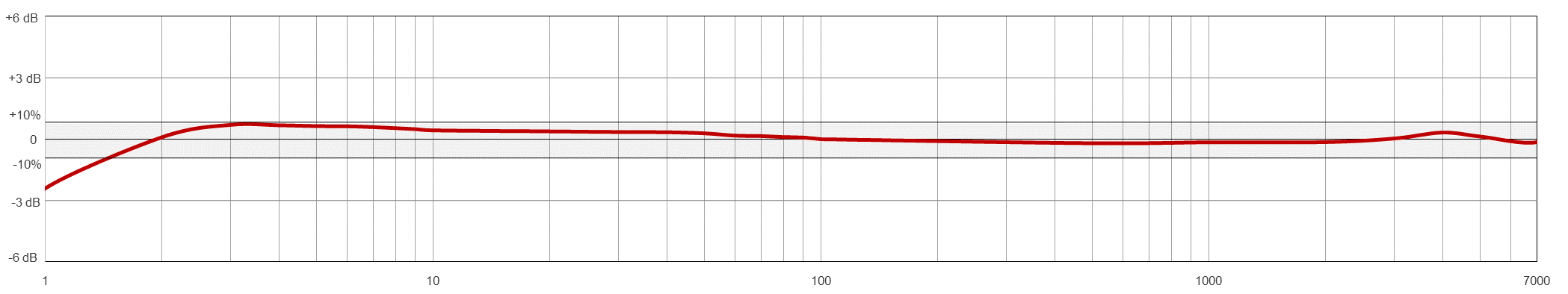

1,5 - 7000 Hz (90 - 420,000 CPM) Frequency Response

VE135Datasheet

Piezo Velocity Sensor, Top Exit 2 Pin Connector, 500 mV/in/sec, ±10%

60-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

500 mV/in/sec (20 mV/mm/sec) Sensitivity

1,0-10000 Hz (60-600,000 CPM) Frequency Response

VE136Datasheet

Piezo Velocity Sensor, Side Exit 2 Pin Connector, 500 mV/in/sec, ±10%

60-420,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

500 mV/in/sec (20 mV/mm/sec) Sensitivity

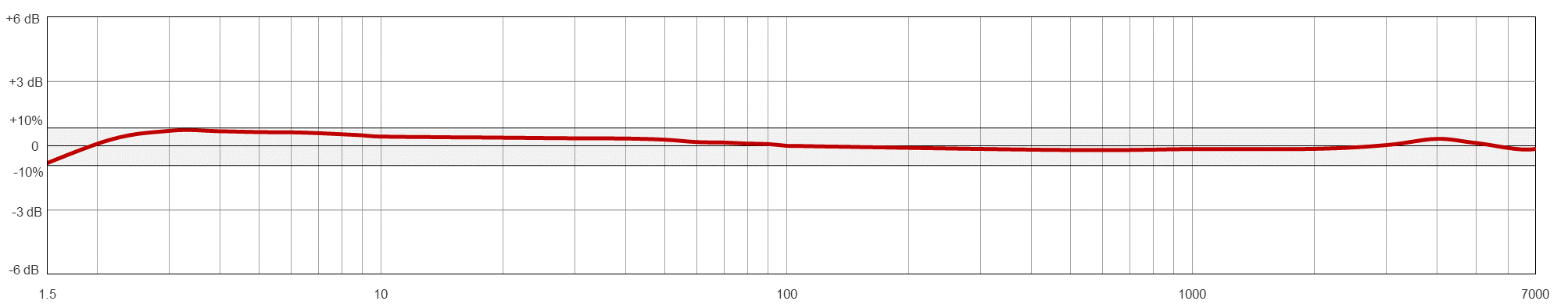

1,0-7000 Hz (60-420,000 CPM) Frequency Response
