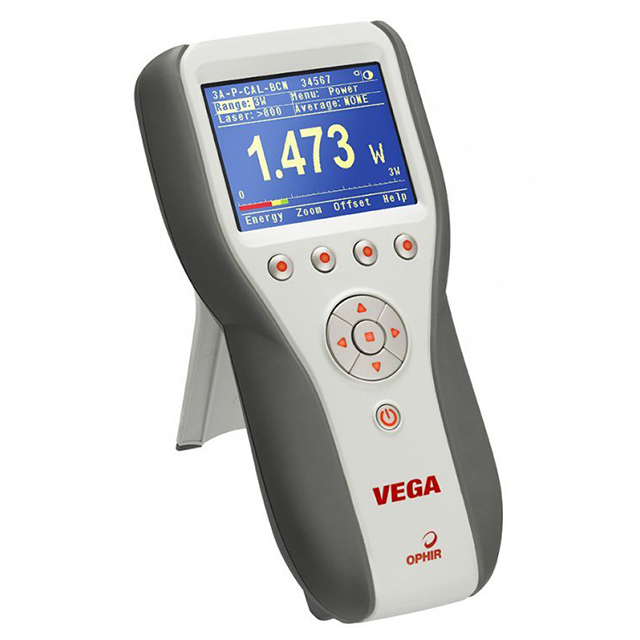

Vega 7Z01560 Laser Power & Energy Meter

Updated:2023-05-25

Views:2273

  • Brand: Ophir
  • Model: Vega
  • Product description: Compatible with all standard Ophir Thermopile, BeamTrack, Pyroelectric and Photodiode sensors,Brilliant color large size TFT 320x240 display,Clear screen color for work with laser safety goggles
  • Feedback
  • WeChat

    QQ

    Online Service

product details

Vega 7Z01560 Laser Power & Energy Meter Description:

Compatible with all standard Ophir Thermopile, BeamTrack, Pyroelectric and Photodiode sensors

Brilliant color large size TFT 320x240 display

Clear screen color for work with laser safety goggles

Illuminated keys for working in the dark

Both digital and analog needle display

USB and RS232 output to PC with Statistics package

Select between English and Japanese interfaces

Analog output

Soft keys and menu driven functions with on line help

Log every data point at up to 4000Hz with pyroelectric sensors

Non-volatile data storage up to 250,000 points

Laser tuning screen and power log

2 position kickstand

System Integrator Tools included: LabVIEW VIs, COM Object Interface

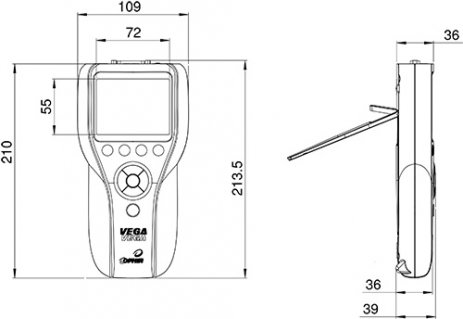

Vega 7Z01560 Laser Power & Energy Meter Drawing:

Vega Drawing

Vega 7Z01560 Laser Power & Energy Meter Specification:

Thermal Sensors Yes
Photodiode Sensors Yes
Pyroelectric Sensors Yes
BeamTrack Sensors Yes
Statistics Yes
Analog Out 1V,2V,5V,10V
Communication RS232, USB
Trigger Input & Output No
Ethernet N/A
RS232 30Hz
GPIB N/A
USB 2000Hz
Bluetooth N/A
On-Board Data Storage 250K
Automation Interface Yes for USB
Labview VI's Yes
