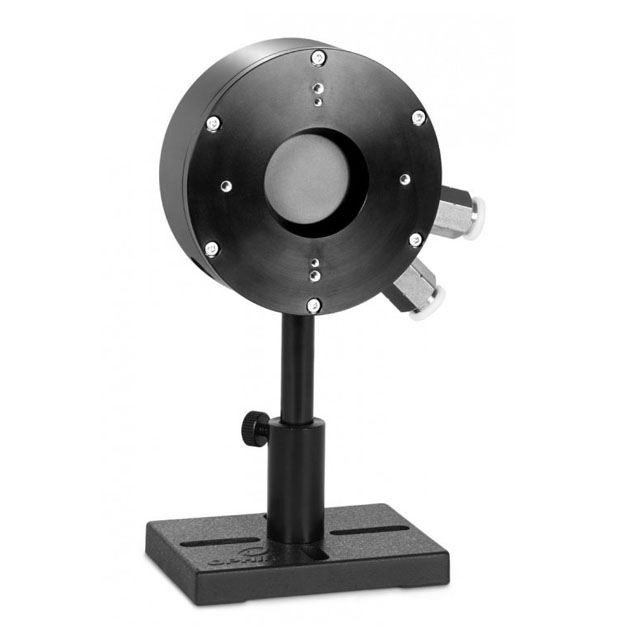

1000W-BB-34-QUAD 7Z07936 High power water-cooled thermal sensor

Updated:2023-05-25

Brand: Ophir
Model:1000W-BB-34-QUAD
Description: The BeamTrack series 1000W-BB-34-QUAD laser measurement sensor measures laser beam position well as power and energy. It has a 34mm aperture and can measure beam position to 0.5mm accuracy. It measure
Data download

Feedback
WeChat

QQ

Online Service

Product Details

1000W-BB-34-QUAD High power water-cooled thermal sensor：

The 1000W-BB-34 is a water cooled thermal power/energy laser measurement sensor with a 34mm aperture. It can measure power from 5W to 1000W and energy from 300mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

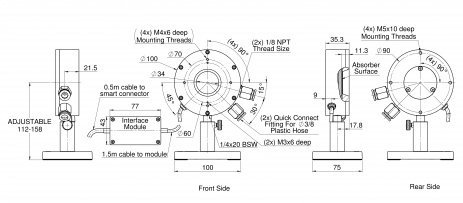

1000W-BB-34-QUAD Drawing of high power water cooled thermal sensor：

1000W-BB-34-QUAD Drawing

1000W-BB-34-QUAD Specification for high power water cooled thermal sensor：

Absorber Type	Broadband
Aperture	Ø34mm
Spectral Range	0.19-20µm
Power Range	5W-1000W
Energy Range	500mJ-300J
Backscattered Power	N.A.
Dimensions	Ø100 W x 35 D (mm)
Max Pulse Energy	300J
Max Average Power Density	7kW/cm²
Response Time	2.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	1000W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
