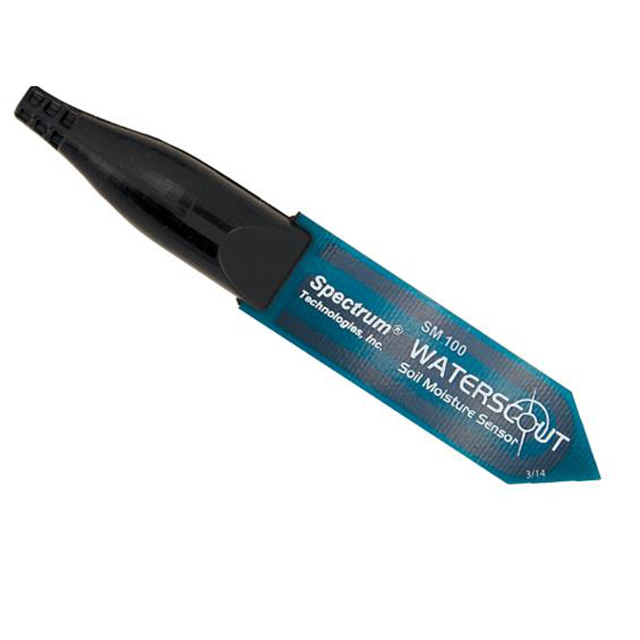

WaterScout SM 100 Soil Moisture Sensor

Updated:2024-05-10

Brand: Spectrum
Model: WaterScout SM 100
Product description: Maintaining a healthy soil moisture and water balance is essential for producing high quality plants. Under-watered plants suffer from nutrient deficiencies, stunting and wilting. Conversely, over-wat
Data download

Feedback
WeChat

QQ

Online Service

product details

WaterScout SM 100 Soil Moisture Sensor Description：

Product Manual

The key is knowing both when and how much to water!

Maintaining a healthy soil moisture and water balance is essential for producing high quality plants. Under-watered plants suffer from nutrient deficiencies, stunting and wilting. Conversely, over-watered plants are more susceptible to disease pressure and less tolerant of dry conditions later on in their life cycle. Extreme over-watering will suffocate the plant and lead to root death.

Measures Volumetric Water Content (VWC) of soil

Capacitance-type sensor responds immediately to changes in soil moisture content for better irrigation decisions

Calibrated for mineral soils or soilless media

Installs easily into 3/4 in (1.9 cm) hole

Install permanently or use to take spot measurements

Can be read with the FieldScout® Soil Sensor Reader (Item 6466) or WatchDog® 2000 and 1000 Series Stations

Connect up to 8 sensors to one station Not compatible with 400/200 loggers.

Specifications

Standard Interface:	WatchDog weather station, FieldScout soil moisture reader
Range:	0% VWC to saturation
Power Requirements:	3 to 5V @ 6 to 10 mA
Output:	Analog voltage 0.5 - 1.5V for a 3V excitation (ratiometric for other excitation voltages)
Resolution:	0.1% VWC
Cable Length:	6 ft (1.8 m) and 20 ft (6 m) standard, extendable up to 50 ft (15 m)
Accuracy:	3% VWC @ EC < 8 mS/cm
Sensing Area:	2.4 in (6 cm) x 0.8 in (2 cm)
