WindSonic ultrasonic anemometers

WindSonic-Key Features

Product Manual Datasheet

1. High quality measurements up to 60m/s (216 km/h) for normal use

2. Models available up to 75m/s (270 km/h) for extreme conditions

3. Unheated and heated models to match conditions and available power

4. Maintenance free, ensuring low cost of ownership

5. A range of output protocols ensures easy integration

6. Comprehensive support includes software and technical advice

WindSonic WindSonic Part Numbers

WindSonic Ultrasonic anemometer - full range

WindSonic 60

• 0-60 m/s (216 km/h) wind speed
• 0-360° wind direction
• NMEA output
• Corrosion free polycarbonate

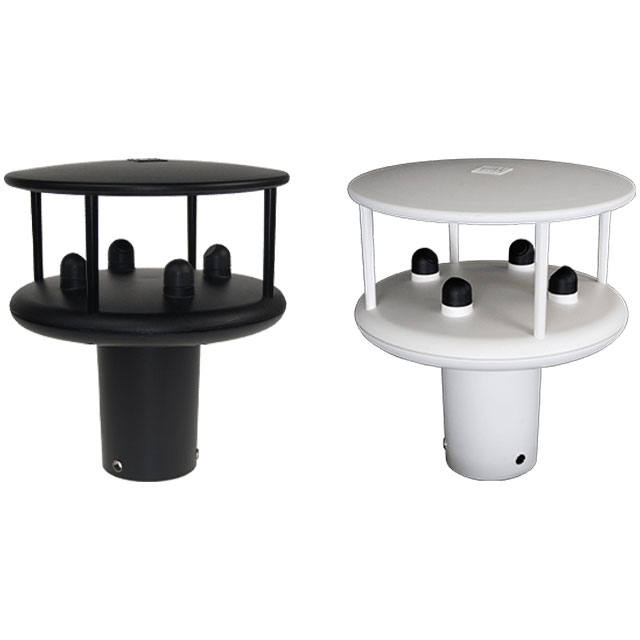

• Available in black or white
• 0.5kg
• ‌‌ ‍
• ‌‌ ‍
• ‌‌ ‍
• ‌‌ ‍

Datasheet

WindSonic 75

• 0-75 m/s (270 km/h) wind speed
• -360° wind direction
• NMEA output
• Corrosion free polycarbonate
• Available in black or white
• 0.5kg
• ‌‌ ‍
• ‌‌ ‍
• ‌‌ ‍
• ‌‌ ‍

Datasheet

WindSonic Metal

• 0-60 m/s (216 km/h) wind speed
• 0-360° wind direction
• NMEA output
• Anodized aluminium alloy construction
• 0.9 kg
• Heating option (-40°C to +70°C)
• Tested for exposed environments (IP66, BS EN 60945, UL2218 Class 1)

Datasheet

WindSonic low cost ultrasonic wind sensors (anemometers) - more details

Designed and manufactured by Gill Instruments in the UK, WindSonic ultrasonic anemometers accurately and reliably measure wind speed and direction.

Cost, quality and performance requirements are met by WindSonic in demanding applications where robust construction and low maintenance requirements suit applications in harsh weather conditions or remote locations. All WindSonic anemometers transmit an instrumentation status code alongside the measurement outputs to confirm correct operation.

Output protocol options for WindSonic include RS232, RS422, RS485, SDI-12, NMEA, 0-5V or 0-20mA

Environmental protection to IP66 across all WindSonic models.

Ultrasonic technology is used in WindSonic wind sensors to deliver highly accurate measurements with no moving parts to wear or recalibrate making WindSonic products extremely reliable and low maintenance. WindSonic anemometers are alternatives to traditional cup and vane or propeller wind sensors but with all the benefits of solid-state ultrasonic technology.
