Keller AG Series 2Mi Pressure Transducers

Updated:2025-08-07

Brand: Keller AG
Model: Series 2Mi
Description: These miniature pressure transducers have been specially developed for very rapid hydrodynamic and aerodynamic in situ pressure measurements. The 2Mi sensors are available in a variety of housing desi
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series 2Mi Pressure Transducers Description：

Datasheet User's Manual

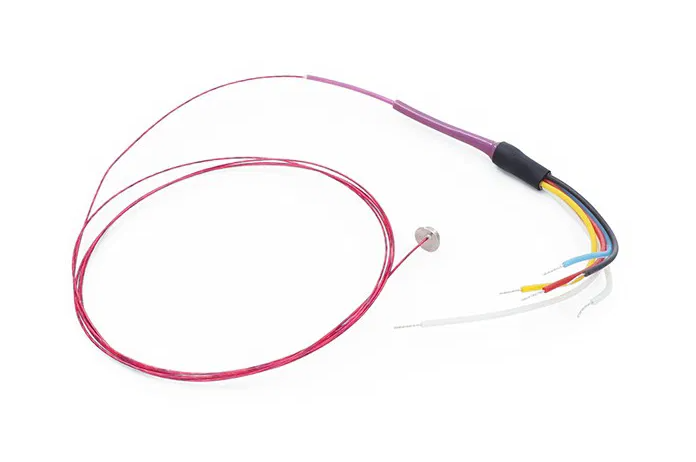

These miniature pressure transducers have been specially developed for very rapid hydrodynamic and aerodynamic in situ pressure measurements. The 2Mi sensors are available in a variety of housing designs and can simply be stuck on at the desired location. Despite its miniature design, the sensor chip is protected against external influences by a steel housing and a silicone elastomer coating. It can also be used in liquids.

Pressure Ranges：0…1 to 0…400 bar

Accuracy：± 0,5 %FS

Pressure Connection：Elastomer coating

Dimensions：⌀ 4,5 mm x 3 mm

Temperature Range：-20…80 °C

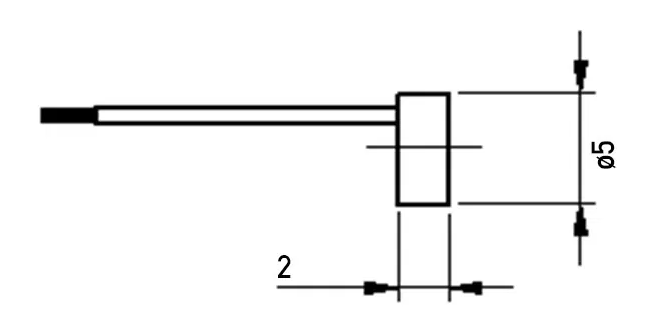

Sketch
