OVERVIEW

Sensor Active area (mm²): 6.8 x5.4

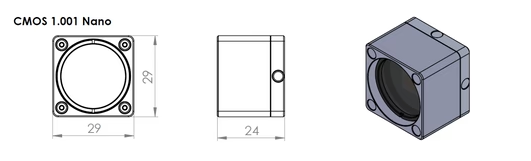

Physical Dimension (mm3): 29x29x20

Number of pixel: 1.3M Pixel

Pixel size: 5.3×5.3µm

Shutter: Global

Mode: CW or pulsed

Bit depth: 10Bit

Dynamic: >62dB

Interface: USB3.0

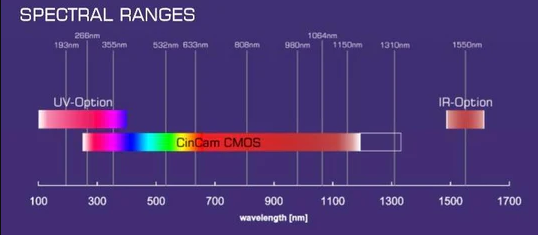

Spectral range: 320nm – 1150nm (reflective ND filter)
