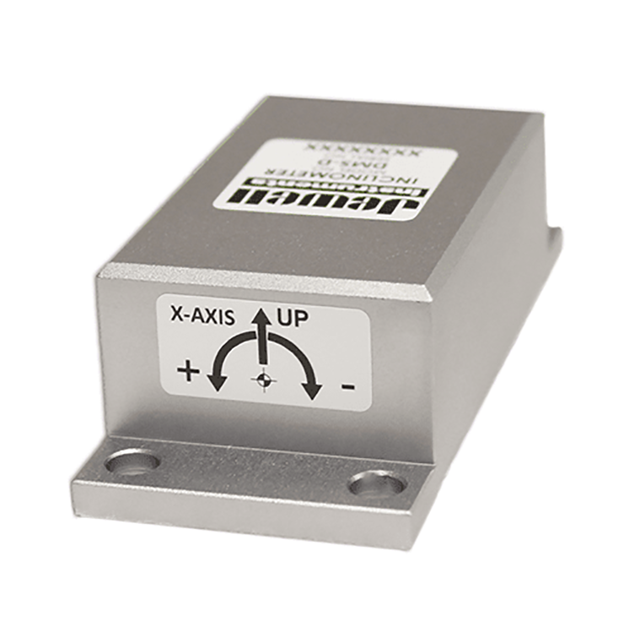

Jewell DMS Digital MEMS Inclinometer

Updated:2026-01-09

Description: The model DMS is a mid-level performance digital MEMS inclinometer for industrial applications. Standard units are available in RS-232, RS-485 and UART TTL interface options. All DMS series inclinomet
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell DMS Digital MEMS Inclinometer Description：

Datasheet Outline Drawing

The model DMS is a mid-level performance digital MEMS inclinometer for industrial applications. Standard units are available in RS-232, RS-485 and UART TTL interface options. All DMS series inclinometers are rated IP67 for waterproofing up to 1m. Custom ranges and output types are also available on request.

Specifications

Angular Range (°)*	±10	±30	±60	±90
Zero Temperature Coefficient (°/°C)	±0.01	±0.01	±0.01	±0.01
Scale Factor Temperature Coefficient (PPM/°C)	≤200	≤200	≤200	≤200
Scale Factor Tolerance (%)	0.7	1.4	2.8	3
Zero Offset Tolerance (°)	0.56	0.56	0.56	0.56
Warm Up (sec)	0.5	0.5	0.5	0.5
Hysteresis (°)	0.02	0.05	0.08	0.1
Time Constant (sec)	0.05	0.05	0.05	0.05
Resolution (°)	0.01	0.01	0.01	0.01

Output Rate	5Hz, 15Hz, 35Hz, 50Hz
Output Type	RS-232/RS-485/TTL
Electromagnetic Compatibility	EN61000 and GBT17626
Impact Resistance	100g@11ms, 3 times/axis (½ sinusoid)
Vibration Resistance	10grms @ 10-1000Hz
Operating Temperature Range	-40 to +85°C
Storage Temperature Range	-55 to +125°C
Seal	IP67
Cables	1m Cable (standard)
Power Requirements	9-36 VDC @ 60mA

Weight	5.3 oz
Dimensions	3.54 × 1.58 × 1.02 in
Features	• Single-Axis and Dual-axis Available • Resolution: 0.01° • Zero Temperature Coefficient: ±0.01°/°C • -40° to +85°C Operation and Storage • RS232, RS485 & UART TTL Outputs • 1m cable whip included
Applications	• Boom Position and Control • Radar and Vehicle Platform Positioning • Industrial Measurement and Control • Drilling Equipment • Navigation Pitch/Roll Measurement • Railway Track Alignment & Maintentance
