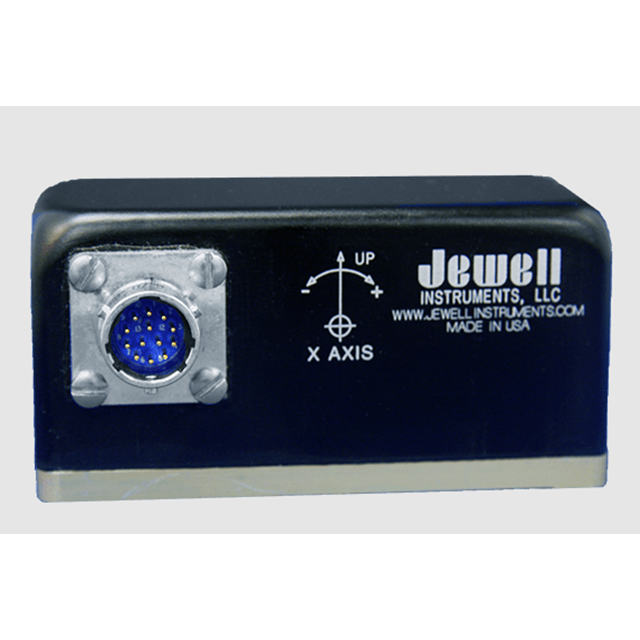

Jewell LCF-2530 Series Linear Accelerometer

Updated:2025-09-06

Brand: Jewell
Model:LCF-2530
Description: The Jewell LCF-2530 Series is a dual axis version of the rugged, high accuracy LCF Series. The design of the LCF-2530 was optimized to provide the high suspension, servo technology in a small and conv
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LCF-2530 Series Linear Accelerometer Description：

Datasheet Outline Drawing

The Jewell LCF-2530 Series is a dual axis version of the rugged, high accuracy LCF Series. The design of the LCF-2530 was optimized to provide the high suspension, servo technology in a small and convenient package for applications requiring a a compact dual axis solution.

Specifications

Features	• ± 0.5g to ± 5.0g Full Range • Filtering 5-100 Hz Bandwidth Available • Exceptional Bias & Scale Factor Repeatability • High Level ± 5 Vdc Output • 1,000g Shock Capability • Built In Temperature Sensor Available • Fluid Damped Pin Out (Options: C-connector, P-Pin) • High Accuracy Dual Axis in Small Package • Superior Bias Stability • Low EMI
Applications	• Railcar Acceleration/Deceleration Control • Train Performance Testing • Active Damping • Rail Car Harshness (NVH) • Manual Rail Measurement

Input Range (g)	±0.25	±0.5	±1.0	±2.0	±5.0
Full Range Output(VDC ±1%)¹	±5.00	±5.00	±5.00	±5.00	±5.00
Non-linearity (%FRO max)²	0.02	0.02	0.02	0.05	0.10
Scale Factor (Volts/g nominal)	20.0	10.0	5.0	2.5	1.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	100	60	60	100	100
Bandwidth (-3dB Hz nominal)	30.0	30.0	30.0	30.0	30.0
Output Axis Misalignment (° maximum)	0.50	1.00	1.00	1.00	1.00
Pendulous Axis Misalignment (° maximum)	0.50	1.00	1.00	1.00	1.00
Bias (g range)	±0.001	±0.002	±0.004	±0.005	±0.005
Bias Temperature Sensitivity (V/°C maximum)	0.001	0.0005	0.0003	0.0003	0.0003
Resolution & Threshold (µg maximum)	1	1	1	1	1

Number of Axes	2
Input Voltage Range (Vdc)	±12 to ±18
Input Current (mA max)	50
Output Impedance (Ω nom)	100
Noise (Vrms max)	0.002

Operating Temperature Range	-40°C to +80 °C
Storage Temperature Range	-60 °C to +90 °C
Vibration (grms)	20
Shock	1000 g, 1 msec, ½ sine
Seal	MIL-STD-202, Method 112, IP65
