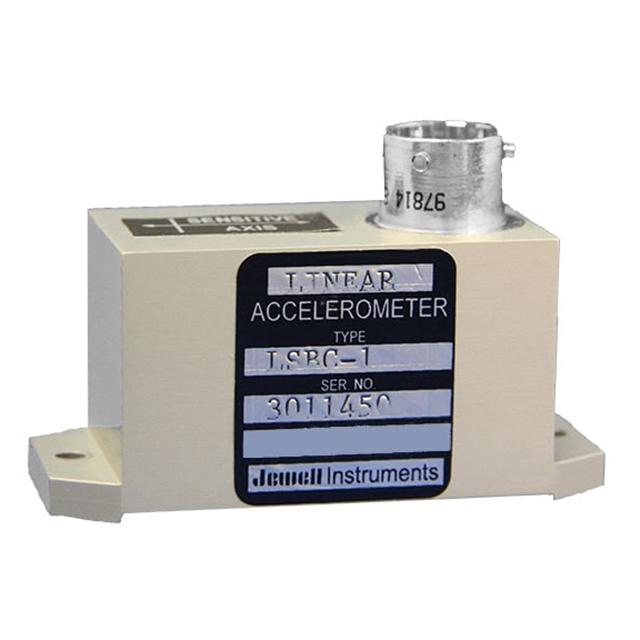

Jewell LSBC/LSBP Series Linear Accelerometer

Updated:2025-09-06

Brand: Jewell
Model: LSBC/LSBP
Description: The Jewell LSB Series Accelerometer is a general-purpose ±0.5G to ±20G linear device designed for rail, commercial, and aerospace sensing requirements. Available with either pin or a circular connecto
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSBC/LSBP Series Linear Accelerometer Description：

Datasheet Outline Drawing

The Jewell LSB Series Accelerometer is a general-purpose ±0.5G to ±20G linear device designed for rail, commercial, and aerospace sensing requirements. Available with either pin or a circular connector termination.

Specifications

Input Range (g)	±0.5	±1.0	±2.0	±5.0	±10.0	±20.0
Full Range Output (FRO V±1.0%)	±5.0	±5.0	±5.0	±5.0	±5.0	±5.0
Non Linearity (%FRO maximum)	0.05	0.05	0.05	0.10	0.10	0.25
Scale Factor (V/g, nominal)	10.0	5.0	2.5	1.0	0.5	0.25
Scale Factor Temperature Sensitivity (PPM/°C, maximum)	200	200	200	200	200	200
Bias (g, maximum)	0.050	0.010	0.010	0.010	0.020	0.050
Bias Temperature Sensitivity (µg/°C)	50	50	50	100	100	200
Natural Frequency (Hz, nominal)	70	100	140	100	140	160
Bandwidth (-3dB, Hz, nominal)	70	100	140	100	140	160
Input-Axis Misalignment (° maximum)	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0
Resolution & Threshold (µg)	10	10	10	10	20	50

Dimensions	2.6 × 1.1 × 2 in
Features	• ±0.5g to ±20.0g Full Range • Bandwidth up to 200 Hz • Satellite Application Reliability • Better than 20 µg Res at 10g Full Scale • Available with 1g Bias Options • -55°C to +95°C Operating Temp Range • Standard for Train Control for more than 30 years • Meets CENELEC/AREMA Standards available
Applications	• Train Braking & Banking • Train Performance Testing • Acceleration Control • Automotive Performance Testing • Active Damping • Rail Car Monitoring • Lateral Acceleration Sensing • Tilt Train Controls • Super-elevation Measurement • Rail Car Vibration Testing • Wind shear Detection • Autopilot • AHARS • Wind Turbine Control
CENELEC/AREMA Standards	CENELEC EN 55022:2010 CENELEC EN 50155:2007 CENELEC EN 61000-4-8:2010 AREMA Part 11.5.1

Input Voltage (VDC nominal)	±12 to ±18
Input Current (mA nominal)	10.0
Output Impedance (Ω, nominal)	10k	5k	2.5k	5k	2.5k	2.5k
Noise (mVrms, maximum)	0.005

Operating Temperature Range	-55°C to +95°C
Survival Temperature Range	-65°C to +105°C
Shock	100g, – 1.011 second, ½ sine
Seal	MIL-STD 202, Method 112
