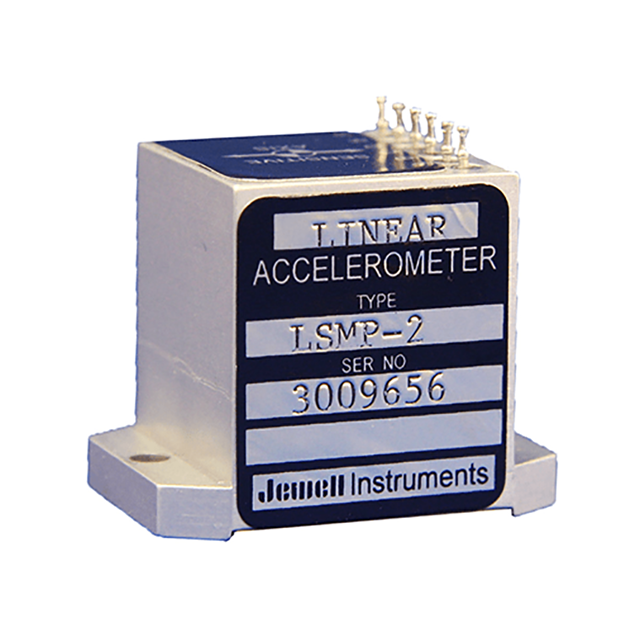

Jewell LSMP Series Linear Accelerometer

Updated:2025-09-21

Brand: Jewell
Model: LSMP
Description: If space is a concern, the Jewell LSM Series accelerometer is the solution for you. These 1″ cube linear accelerometers have 100,000 hour MTBF reliability and up to 20g full-scale sensing range. Its w
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSMP Series Linear Accelerometer Description：

Datasheet Drawing

If space is a concern, the Jewell LSM Series accelerometer is the solution for you. These 1″ cube linear accelerometers have 100,000 hour MTBF reliability and up to 20g full-scale sensing range. Its wide input range and bandwidth features meet the demanding needs of a variety of aerospace applications.

Specifications

Input Range (g)¹	±0.5	±1.0	±2.0	±5.0	±10.0	±20.0
Full Range Output (FRO V±1.0%)	±5.0	±5.0	±5.0	±5.0	±5.0	±5.0
Non Linearity (%FRO maximum)²	0.05	0.05	0.05	0.10	0.10	0.25
Scale Factor (V/g, nominal)	10.0	5.0	2.5	1.0	0.5	0.25
Scale Factor Temperature Sensitivity (PPM/°C, maximum)	200	200	200	200	200	200
Bias (g, maximum)	0.050	0.010	0.010	0.010	0.020	0.050
Bias Temperature Sensitivity (µg/°C)	50	50	50	100	100	200
Natural Frequency (Hz, nominal)³	70	100	140	100	140	160
Bandwidth (-3dB, Hz, nominal)	70	100	140	100	140	160
Input-Axis Misalignment (° maximum)	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0
Resolution & Threshold (µg)	10	10	10	10	10	10

Weight	2 oz
Dimensions	1.50 × 1.05 × 1.39 in
Features	• ±0.5g to ±20.0g Full Range • Filtering up to 200 Hz Bandwidth with 0.6 Damping • Satellite Application Reliability • Better than 20 µg Res at 10g Full Scale • -55°C to +95°C Operating Temp Range
Applications	• Satellite Nutation Sensing • Radar Leveling • Train Braking and Banking • Autopilot Systems • Train Performance Testing • Performance Testing • Wind Shear Detection Systems • Mars Rover • Thermal Vacuum Chamber (product) Testing

Input Voltage (VDC nominal)⁴	±12 to ±18
Input Current (mA nominal)	10.0
Output Impedance (Ω, nominal)	10k	5k	2.5k	5k	2.5k	2.5k
Noise (mVrms, maximum)	5.0

Operating Temperature Range	-55°C to +95°C
Survival Temperature Range	-65°C to +105°C
Shock	100g, 11 msec, ½ sine
Seal	MIL-STD 202, Method 112
