100C-BB-18-SH 7Z02680 Thermal Power Laser Sensor

Updated:2023-06-01

Brand：Ophir
Model：100C-BB-18-SH
Description: The 100C-BB-18-SH is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It
Data download

Feedback
WeChat

QQ

Online Service

Product Details

100C-BB-18-SH 7Z02680 Thermal Power Laser Sensor Description：

The 100C-BB-18-SH is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It does not measure energy. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 11µm.

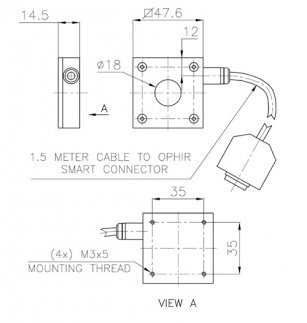

100C-BB-18-SH 7Z02680 Thermal Power Laser Sensor Drawing：

100C-BB-18-SH Drawing

100C-BB-18-SH 7Z02680 Thermal Power Laser Sensor Specifications：

Aperture	Ø18mm
Spectral Range	0.19-11µm
Power Range	60mW-100W
Energy Range	NA
Dimensions	48 L x 48 W x 15 D (mm)
Max Average Power Density	30kW/cm² at 4W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	100W heat sinked
Communication	N.A.
