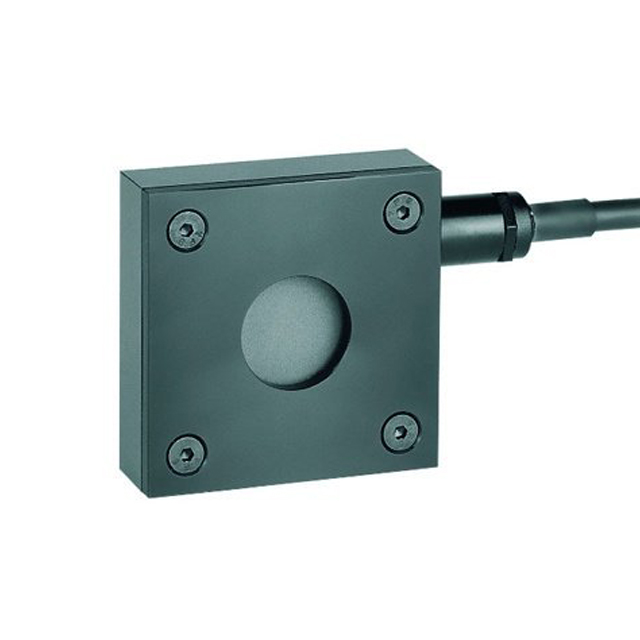

100C-UAF Thermal Power Laser Sensor

Updated:2023-06-01

Views:1261

  • Brand:Ophir
  • Model:100C-UAF
  • Description: The 100C-UAF is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has t
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

100C-UAF Thermal Power Laser Sensor Description:

The 100C-UAF is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm. It is connected via cable to a separate circuit board with either digital RS232 output or analog output.

100C-UAF Thermal Power Laser Sensor Drawing:

100C-UAF Drawing

100C-UAF Thermal Power Laser Sensor Specifications:

Aperture Ø18mm
Spectral Range 0.19-20µm
Power Range 60mW-100W
Energy Range NA
Dimensions 48 L x 48 W x 15 D (mm)
Max Average Power Density 30kW/cm² at 4W
Response Time 1.2 s
Max Energy Density(for <100ns) 0.3J/cm²
Max Energy Density(for 2ms) 10J/cm²
Max Average Power 100W heat sinked
Communication RS232, Analog
