10K-W-BB-45 7Z07102 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 10K-W-BB-45
Description: The 10K-W-BB-45 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 45mm aperture. It can measure power from 100W to 11,000W. It has a deflecting cone and annul
Data download

Feedback
WeChat

QQ

Online Service

Product Details

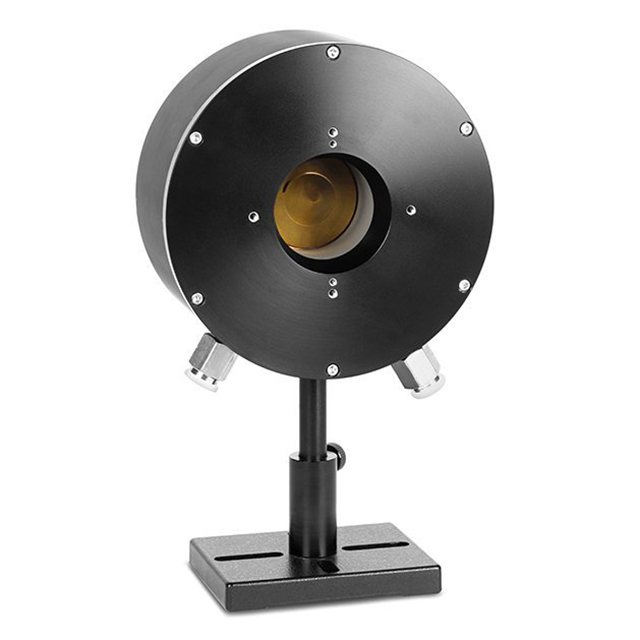

10K-W-BB-45 7Z07102 Laser Measurement Sensor Description:

The 10K-W-BB-45 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 45mm aperture. It can measure power from 100W to 11,000W. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm². It covers the spectral range from 0.8 - 2 and 10.6µm. The sensor comes with a standard 5 meter cable for connecting to a meter or PC interface.

10K-W-BB-45 7Z07102 Laser Measurement Sensor Drawing：

10K-W-BB-45 Drawing

10K-W-BB-45 7Z07102 Laser Measurement Sensor Specification：

Absorber Type	Beam deflector + broadband absorber
Aperture	Ø45mm
Spectral Range	0.8-2µm, 10.6µm
Power Range	100W-11,000W
Energy Range	N.A.
Backscattered Power	~3.5% without Scatter Shield, ~1% with Scatter Shield
Dimensions	Ø146 W x 70 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	10kW/cm²
Response Time	2.7 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	N.A.
Max Average Power	11kW
BeamTrack Functions	N.A.
