15K-W-BB-45 7Z02770 Laser Measurement Sensor

Updated:2023-05-26

Brand: Ophir
Model: 15K-W-BB-45
Product description: The 15K-W-BB-45 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 45mm aperture. It can measure power from 100W to 15,000W. It has a deflecting cone and annul
Data download

Feedback
WeChat

QQ

Online Service

product details

15K-W-BB-45 7Z02770 Laser Measurement Sensor Description:

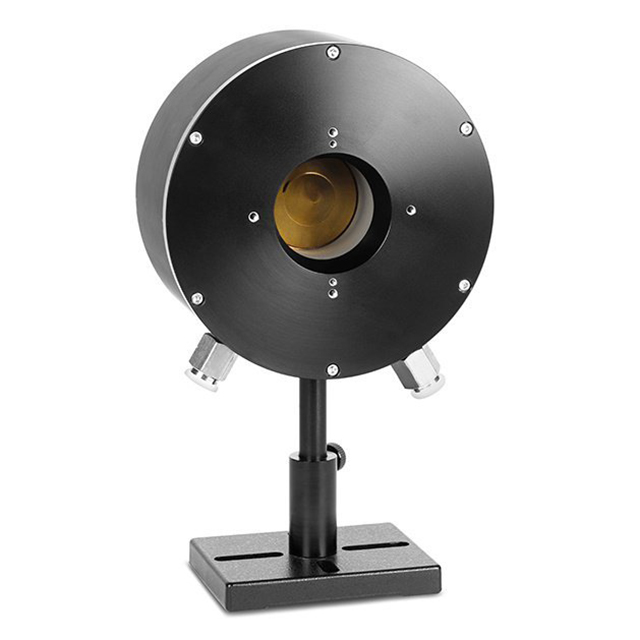

The 15K-W-BB-45 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 45mm aperture. It can measure power from 100W to 15,000W. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm². It covers the spectral range from 0.8 - 2 and 10.6µm. The sensor comes with a standard 5 meter cable for connecting to a meter or PC interface.

15K-W-BB-45 7Z02770 Laser Measurement Sensor Drawing：

15K-W-BB-45 Drawing

15K-W-BB-45 7Z02770 Laser Measurement Sensor Specification：

Absorber Type	Beam deflector + broadband absorber
Aperture	Ø45mm
Spectral Range	0.8-2µm, 10.6µm
Power Range	100W-15,000W
Energy Range	N.A.
Backscattered Power	~3.5% without Scatter Shield, ~1% with Scatter Shield
Dimensions	Ø146 W x 82 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	10kW/cm²
Response Time	3.5 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	N.A.
Max Average Power	15kW
BeamTrack Functions	N.A.
