120K-W 7Z02691 Laser Measurement Sensor

Updated:2023-05-29

Views:1085

  • Brand: Ophir
  • Model: 120K-W
  • Description: The 120K-W is a water cooled thermal power/energy laser measurement sensor for very high powers with a 200mm aperture. It has dimensions 520 x 545 x 750mm. The 120k-W laser power meter can measure pow
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

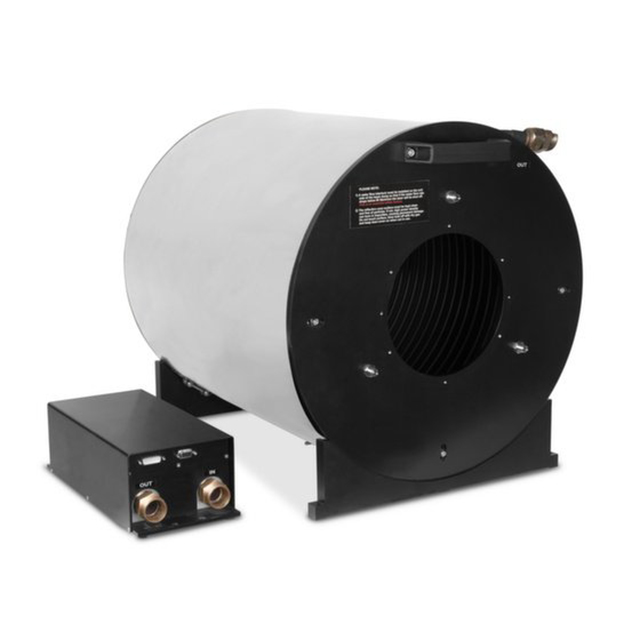

120K-W 7Z02691 Laser Measurement Sensor Description:

The 120K-W is a water cooled thermal power/energy laser measurement sensor for very high powers with a 200mm aperture. It has dimensions 520 x 545 x 750mm. The 120k-W laser power meter can measure power from 10,000W to 120,000W and is designed for a beam expanded to 100mm diameter to hit its deflecting cone and is calibrated at 1.07µm. Applications include laser weapon measurements and laser measurement for semiconductor lithography processes. The sensor comes with a 10 meter cable for connecting to a meter or PC interface

120K-W 7Z02691 Laser Measurement Sensor Drawing:

120K-W Drawing

120K-W 7Z02691 Laser Measurement Sensor Specification:

Absorber Type N.A.
Aperture Ø200mm
Spectral Range 0.9-1.1µm
Power Range 10kW - 120kW
Energy Range N.A.
Backscattered Power Less than 1%
Dimensions 520 L x 545 W x 750 D (mm)
Max Pulse Energy N.A.
Max Average Power Density N.A.
Response Time N.A.
Max Energy Density (for <100ns) N.A.
Max Energy Density (for 2ms) N.A.
Max Average Power N.A.
BeamTrack Functions N.A.
