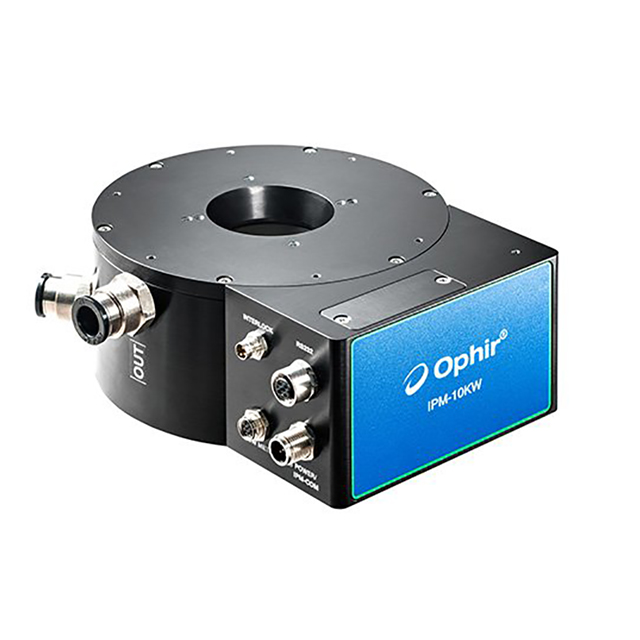

IPM-10KW 7Z07106 Industrial Sensor

Updated:2023-05-29

Views:995

  • Brand: Ophir
  • Model: IPM-10KW
  • Description: The IPM-10KW industrial sensor measures up to 11kW at Wavelengths 0.9-1.1 µm, 10.6µm. Heavy duty design with industrial interface and connectors. Has an Interlock to protect from overpower or cooling
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

IPM-10KW 7Z07106 Industrial Sensor Description:

The IPM-10KW industrial sensor measures up to 11kW at Wavelengths 0.9-1.1 µm, 10.6µm. Heavy duty design with industrial interface and connectors. Has an Interlock to protect from overpower or cooling water failure. With Real time visibility, traceability, and logging for predictive maintenance. It has lSO17025 NIST & PTB traceable calibration.

The IPM-10KW has heavy duty connectors and an interlock output. For more protection, the user can order the IPM-Shutter10 which provides an automated shutter with a field replaceable anti-reflective coated window. Integration into modern automation systems is available with the IPM-COM communication module (EtherNet/IP and Profinet).

IPM-10KW 7Z07106 Industrial Sensor Drawing:

IPM-10KW Drawing

IPM-10KW 7Z07106 Industrial Sensor Specification:

Absorber Type Beam deflector + broadband absorber
Aperture Ø45mm
Spectral Range 0.9-1.1µm, 10.6µm
Power Range 100W-11,000W
Energy Range 60J-10kJ
Backscattered Power ~3.5% without IPM-Shutter10, ~1% with IPM-Shutter10
Dimensions Ø179 W x 70 D (mm)
Max Pulse Energy 10kJ
Max Average Power Density 10kW/cm²
Response Time 2.7 s
Max Energy Density (for <100ns) 30J/cm²
Max Energy Density (for 2ms) 1350J/cm²
Max Average Power 11kW
BeamTrack Functions N.A.
