SDI 2470 & 2476 HIGH-PERFORMANCE ACCELEROMETERS

SDI 2470 & 2476 HIGH-PERFORMANCE ACCELEROMETERS Description：

Datasheet

SDI’s Premium Models 2470 and 2476 High-Performance Three-Axis MEMS DC Accelerometers are rugged plug-and-play measurement devices that provide enhanced performance over temperature for use in zero to medium frequency applications experiencing large or rapid temperature variations or maintaining hot or cold extremes for extended periods of time.

The 2470 comes in a traditional 1-inch square package with an integrated cable and is operationally identical to the 2476, which features a connector instead of integrated cable for quick installations and removal without altering the cabling. The 2470 and 2476 incorporate three orthogonally mounted, hermetically sealed, low noise SDI Model 1522 surface mount accelerometers, which are individually tested, programmed, calibrated and verified in a climate chamber to ensure the greatest accuracy in thermally volatile conditions. The 2470 and 2476 include initial calibration reports detailing the test performance data.

Onboard voltage regulation and an internal voltage reference eliminate the need for precision power supplies. The robust, anodized aluminum case is potted then epoxy sealed and can be mounted easily via two screws, an adhesive, or by attaching a magnet. Individual axis directions are marked on the case with positive acceleration defined as acceleration in the direction of the axis arrow.

ZERO TO MEDIUM FREQUENCY APPLICATIONS

OPERATION

SDI Models 2470 and 2476 MEMS DC Accelerometers provide optimal performance when they are connected to instrumentation in a differential configuration using both the AOP and AON output signals, but they also support single ended operation for complete flexibility.

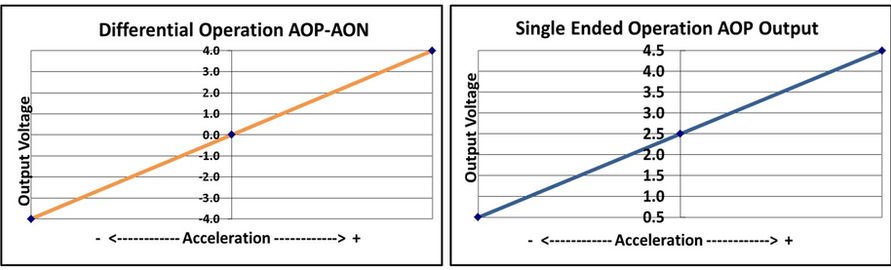

These Accelerometers produce differential analog output voltage pairs (AON & AOP) which vary with acceleration. The signal outputs are fully differential about a common mode voltage of approximately 2.5 volts. At zero acceleration, the output differential voltage is nominally 0 volts DC; at ±full scale acceleration, the output is ±4 volts DC, respectively, as shown in the figure (below). The output scale factor is independent from the supply voltage of +8 to +32 volts.

When a differential connection is not possible, SDI recommends connecting the accelerometer to instrumentation in single ended mode by connecting AOP and GND to the instrumentation and leaving AON disconnected. Keep in mind that the signal to noise ratio is reduced by half for a single-ended vs. a differential connection.

PERFORMANCE - ALL VERSIONS

All Models: Unless otherwise specified, Vs=+8 to +32 VDC, TC=25°C, Differential Mode. Span = ±g range = 8000 mV.

Note (1): For 2g thru 50g only; 100g and greater versions are tested and specified from -65 to +65g.

NOTICE: Stresses greater than those listed may cause permanent damage to the device. These are maximum stress ratings only. Functional operation of the device at or above these conditions is not implied.

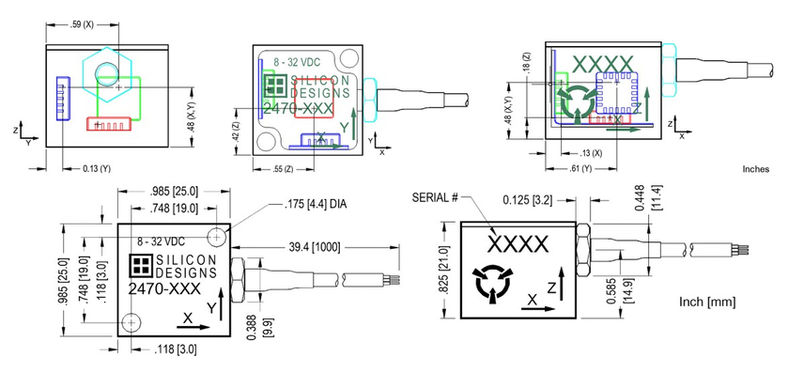

SDI Model 2470

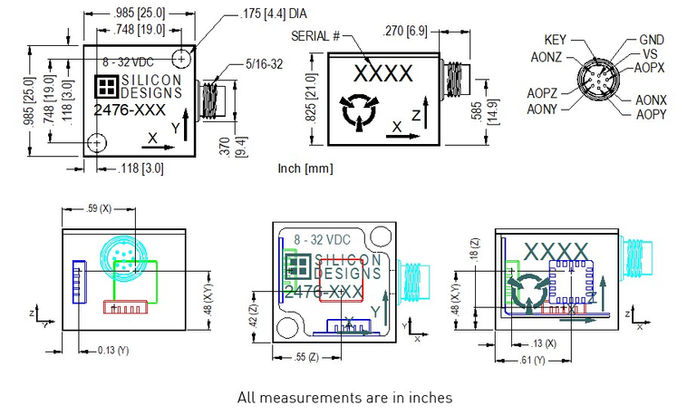

SDI Model 2476
