30A-BB-18 P/N7Z07124 Laser Measurement Sensor

Updated:2023-05-19

Brand: Ophir
Model: 30A-BB-18
Product description: The 30A-BB-18 is a general purpose thermal power/energy laser measurement sensor with a 17.5mm aperture. It can measure from 10mW to 30W and from 6mJ to 30J. It has the spectrally flat broadband coati
Data download

Feedback
WeChat

QQ

Online Service

product details

30A-BB-18 P/N7Z07124 Laser Measurement Sensor Introduction：

The 30A-BB-18 is a general purpose thermal power/energy laser measurement sensor with a 17.5mm aperture. It can measure from 10mW to 30W and from 6mJ to 30J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

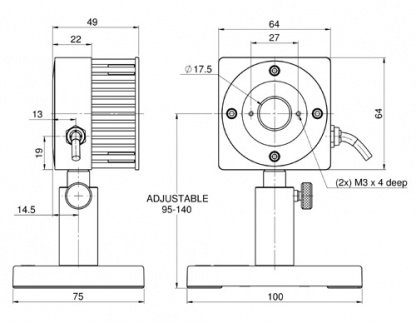

30A-BB-18 P/N7Z07124 Laser Measurement Sensor Drawing：

30A-BB-18 Drawing

30A-BB-18 P/N7Z07124 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø17.5mm
Spectral Range	0.19 - 11µm
Power Range	10mW-30W
Energy Range	6mJ-30J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 49 D (mm)
Max Pulse Energy	30J
Max Average Power Density	20kW/cm²
Response Time	0.8 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	2J/cm²
Max Average Power	30W
BeamTrack Functions	N.A.
