L30A-BB-26-10MM P/N7Z07130 Laser Measurement Sensor

Updated:2023-05-19

Brand: Ophir
Model: L30A-BB-26-10MM
Product description: The L30A-BB-26-10MM is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measu
Data download

Feedback
WeChat

QQ

Online Service

product details

L30A-BB-26-10MM P/N7Z07130 Laser Measurement Sensor Introduction：

The L30A-BB-26-10MM is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure energy from 20mJ to 60J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 11um. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface.

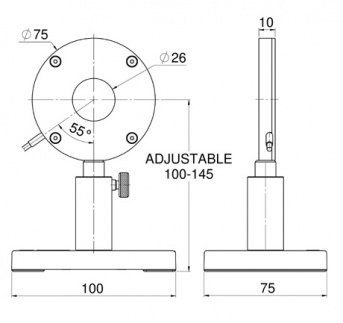

L30A-BB-26-10MM P/N7Z07130 Laser Measurement Sensor Drawing：

L30A-BB-26-10MM Drawing

L30A-BB-26-10MM P/N7Z07130 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø26mm
Spectral Range	0.19 - 11µm
Power Range	80mW-30W
Energy Range	20mJ-60J
Backscattered Power	N.A.
Dimensions	Ø75 W x 10 D (mm)
Max Pulse Energy	60J
Max Average Power Density	20kW/cm²
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	30W
BeamTrack Functions	N.A.
