50(150)A-BB-26-QUAD P/N7Z07938 Laser Measurement Sensor

Updated:2023-05-22

Brand: Ophir
Model: 50(150)A-BB-26-QUAD
Product description: The BeamTrack series 50(150)A-BB-26-QUAD laser measurement sensor measures laser beam position as well as power and energy. It has a 26mm aperture and can measure position to 0.1mm accuracy. It measur
Data download

Feedback
WeChat

QQ

Online Service

product details

50(150)A-BB-26-QUAD P/N7Z07938 Laser Measurement Sensor Introduction：

The BeamTrack series 50(150)A-BB-26-QUAD laser measurement sensor measures laser beam position as well as power and energy. It has a 26mm aperture and can measure position to 0.1mm accuracy. It measures power from 40mW to 50W continuously and to 150W intermittently.It can measure energy from 20mJ to 100J.The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

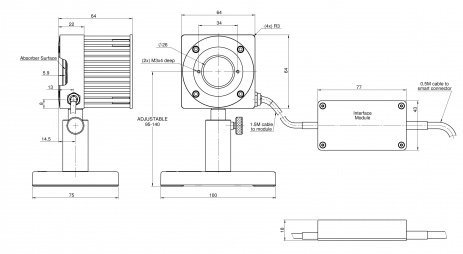

50(150)A-BB-26-QUAD P/N7Z07938 Laser Measurement Sensor Drawing：

50(150)A-BB-26-QUAD Drawing

50(150)A-BB-26-QUAD P/N7Z07938 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø26mm
Spectral Range	0.19-11µm
Power Range	40mW-150W
Energy Range	20mJ-100J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 64 D (mm)
Max Pulse Energy	100J
Max Average Power Density	12kW/cm²
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	150W
BeamTrack Functions	Power/Energy/Position
