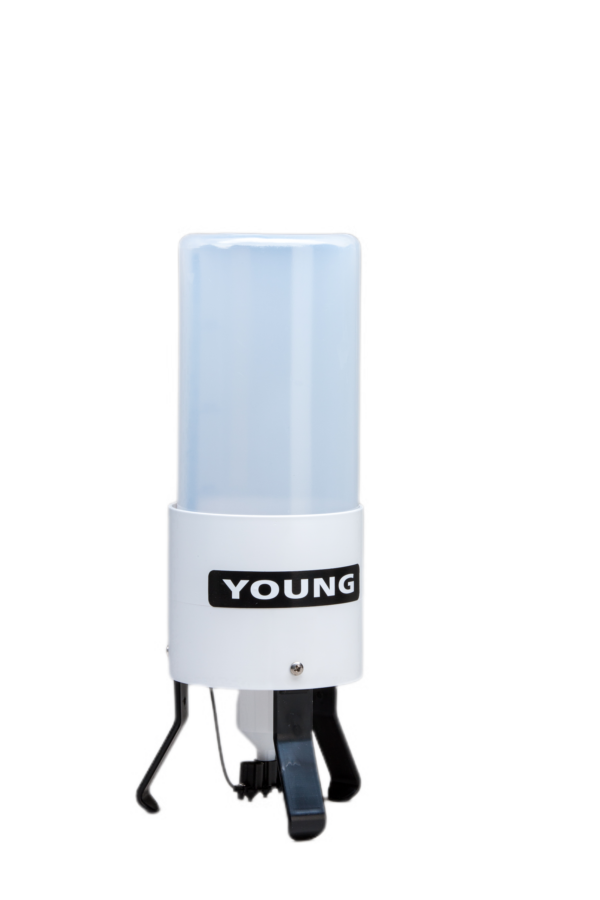

52260 Rain Gauge Calibrator

Updated:2023-02-10

Brand: R.M.Young
Model: 52260
Product description: The YOUNG Model 52260 Rain Gauge Calibrator offers a simple and convenient way to determine rain gauge accuracy. The constant head adapter attached to the 1000 ml water container regulates the flow o
Data download

Feedback
WeChat

QQ

Online Service

product details

52260 Rain Gauge Calibrator Description：

User's manual

The YOUNG Model 52260 Rain Gauge Calibrator offers a simple and convenient way to determine rain gauge accuracy. The constant head adapter attached to the 1000 ml water container regulates the flow of water through one of three flow (rate) nozzles. A stand for use with YOUNG Models 52202 and 52203 Tipping Bucket Rain Gauge is included (may also be used with other sensors).

52260 Rain Gauge Calibrator Specification：

Materials：	Graduated 1000 ml bottle Bottle stand – fits in rain gauge collector Constant head adapter Nozzles for 1000, 1500, 2000 ml/hr nominal flow rates
Dimensions：	Overall height: 29 cm (11.4 in) Diameter: 13 cm (5.1 in)
Weight：	0.2 kg (0.5 lb)
Shipping Weight：	0.8 kg (1.8 lb)
