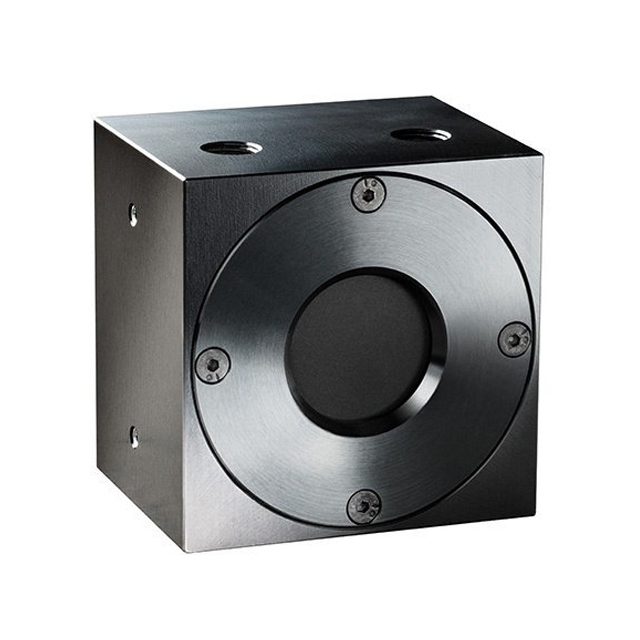

600W-UAF OEM Thermal Power/Energy Laser Sensor

Updated:2023-06-05

Brand：Ophir
Model：600W-UAF
Description: The 600W-UAF is a water cooled OEM thermal power/energy laser sensor with an 26mm aperture. It can measure from 5W to 600W. It can measure energy from 500mJ to 300J. Its high damage threshold LP2 abso
Data download

Feedback
WeChat

QQ

Online Service

Product Details

600W-UAF OEM Thermal Power/Energy Laser Sensor Description：

The 600W-UAF is a water cooled OEM thermal power/energy laser sensor with an 26mm aperture. It can measure from 5W to 600W. It can measure energy from 500mJ to 300J. Its high damage threshold LP2 absorber covers the spectral range from 0.35 to 2.2µm. It has analog and RS232 output.

600W-UAF OEM Thermal Power/Energy Laser Sensor Drawing：

600W-UAF Drawing

600W-UAF OEM Thermal Power/Energy Laser Sensor Specifications：

Aperture	Ø26mm
Spectral Range	0.35-2.2µm
Power Range	5W-600W
Energy Range	500mJ-300J
Dimensions	65 L x 65 W x 49 D (mm)
Max Average Power Density	11kW/cm² at 600W
Response Time	2.5 s
Max Energy Density(for <100ns)	0.1J/cm²
Max Energy Density(for 2ms)	130J/cm²
Max Average Power	600W water cooled free standing
Communication	RS232, Analog
