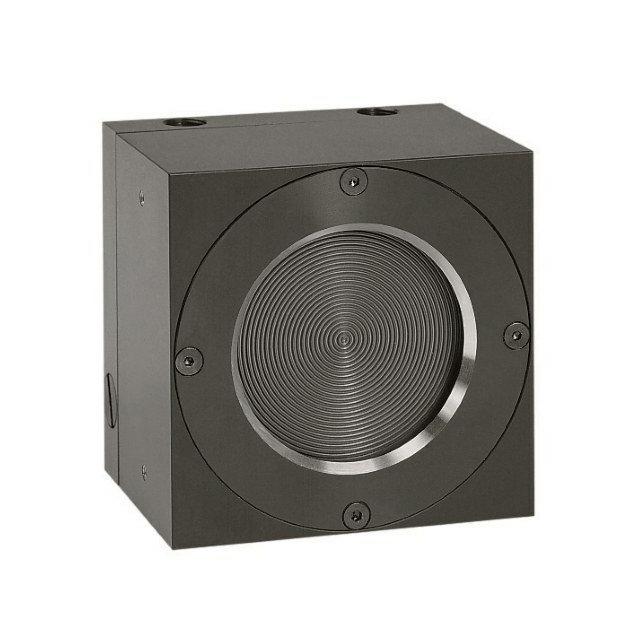

L300W-UAE OEM Thermal Power/Energy Laser Sensor

Updated:2023-06-05

Brand：Ophir
Model：L300W-UAE
Description: The L300W-UAE is a water cooled OEM thermal power/energy laser sensor with a 50mm aperture. It can measure from 500mW to 300W. It can measure energy from 200mJ to 300J. It has the spectrally flat broa
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L300W-UAE OEM Thermal Power/Energy Laser Sensor Description：

The L300W-UAE is a water cooled OEM thermal power/energy laser sensor with a 50mm aperture. It can measure from 500mW to 300W. It can measure energy from 200mJ to 300J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm. It has Ethernet output.

L300W-UAE OEM Thermal Power/Energy Laser Sensor Drawing：

L300W-UAE Drawing

L300W-UAE OEM Thermal Power/Energy Laser Sensor Specifications：

Aperture	Ø50mm
Spectral Range	0.19-20µm
Power Range	0.5W-300W
Energy Range	200mJ-300J
Dimensions	80 L x 80 W x 58 D (mm)
Max Average Power Density	9kW/cm² at 300W
Response Time	2.5 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	300W water cooled free standing
Communication	Ethernet
