CLASS 1, DIVISION 2 (ATEX ZONE 2) ACCELEROMETERS

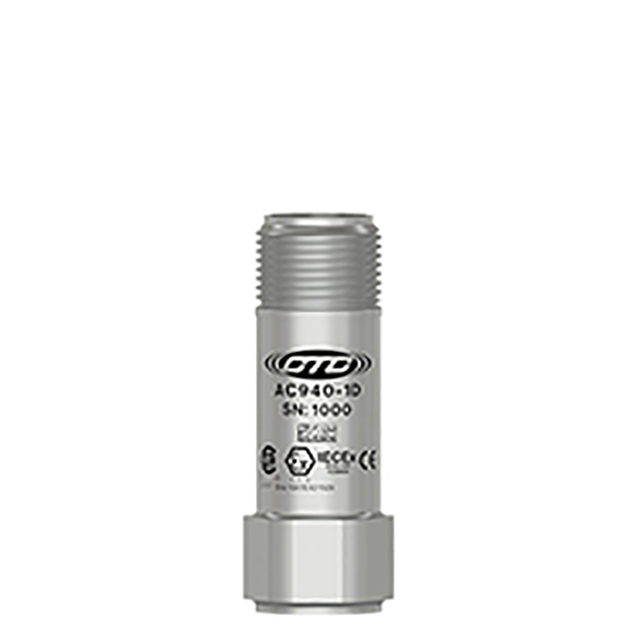

AC940Datasheet

Miniature Industrial, Class I, Division 2 / Zone 2 Accelerometer, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10%

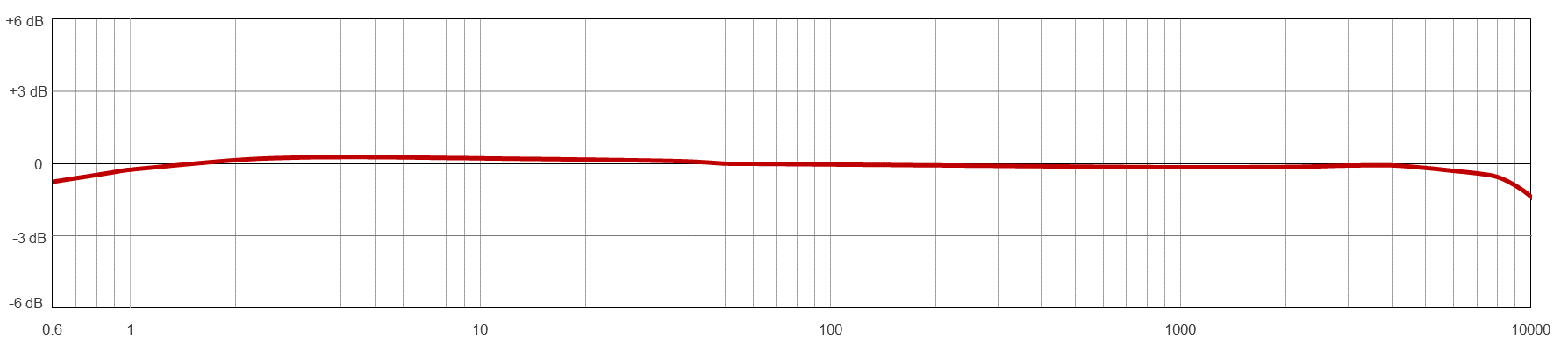

36-900,000 CPM Frequency Response (±3dB)

-58 to 250 °F (50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must use "Class I, Division 2" CB190 or CB296 Cable and JQ2A or JQ2N Connector

AC944Datasheet

Miniature Industrial Class I, Division 2 / Zone 2 Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250°F (-50 to 121°C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must Use "Class I, Division 2" CB190 or CB296 and JQ2A or JQ2N Connector

AC933Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Accelerometer, Top Exit 2 Pin Connector, 50 mV/g, ±10%

48-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

Class I, Division 2 / Zone 2 Rating

Must Use "Class I, Division 2" CB190 or CB296 Cable and Q2A or Q2N Connectors

AC934Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Accelerometer, Side Exit 2 Pin Connector, 50 mV/g, ±10%

48-516,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

Class I, Division 2 / Zone 2 Rating

Must Use "Class I, Division 2" CB190 or CB296 Cable and Q2A or Q2N Connectors

AC935Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Class I, Division 2 Zone 2 Rating

Excellent for Higher g Applications

AC936Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10%

30-516,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Class I, Division 2 Rating

Excellent for Higher g Applications

AC931Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Accelerometer, Top Exit 2 Pin Connector, 10 mV/g, ±10%

60-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Class I, Division 2 / Zone 2 Rating

Must Use "Class I, Division 2" CB190 or CB296 Cable and Q2A or Q2N Connectors

TA931Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Dual Output Sensor, Acceleration and Temperature, Top Exit 3 Pin Connector, 10 mV/g, 10 mV°C, ±10%

72-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved, High Performance Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA935Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Dual Output Sensor, Acceleration and Temperature, Top Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must Use "Class I, Division 2" CB191 or CB298 Cable and Q3A or Q3N Connectors

TA936Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Dual Output Sensor, Acceleration and Temperature, Side Exit 3 Pin Connector, 100 mV/g, 10 mV°C, ±10%

30-516,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must Use "Class I, Division 2" CB191 or CB289 Cable and Q3A or Q3N Connectors

TA938Datasheet

Low Capacitance, Class I, Division 2 / Zone 2 Dual Output Sensor, Acceleration and Temperature, Side Exit 3 Pin Connector, M8 Captive Bolt, 100 mV/g, 10 mV°C, ±10%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must Use "Class I, Division 2" CB191 or CB298 Cable and Q3A or Q3N Connectors

AC949Datasheet

Class I, Division 2 / Zone 2 Biaxial Accelerometer, Side Exit 3 Pin Connector, with X and Z Axis, 100 mV/g, ±10%

60-390,000 CPM Frequency Response (±3dB)

-58 to 250°F (-50 to 121°C) Temperature Range

Welded, Hermetic Sealing

CAS/ATEX Approved

Must Use "Class I, Division 2" CB191 or CB212 and D3Q Connector

AC950Datasheet

Class I, Division 2 / Zone 2 Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, 100 mV/g, ±10%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250°F (-54 to 121°C) Temperature Range

Welded, Hermetic Sealing

CSA/ATEX Approved

Must Use "Class I, Division 2" CB192 or CB218 Cable and J4Q Connector
