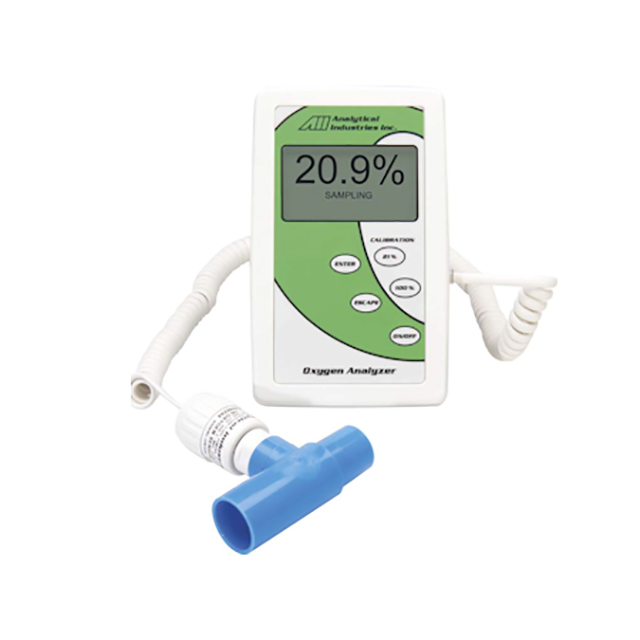

Handheld Oxygen Analyzers for Medical Gases - AII-2000

Updated:2023-09-22

Brand: PST
Model: AII-2000
Product description: Analytical Industries’ AII-2000 series or Palm O2 handheld oxygen analyzers provide a very easy way to verify oxygen and other medical gases used in medical or veterinary clinics. These FDA approved i
Data download

Feedback
WeChat

QQ

Online Service

product details

Handheld Oxygen Analyzers for Medical Gases - AII-2000 Description：

Product Manual

FDA Approved Inexpensive O2 Verification

Features

Very easy to operate

Maintenance free oxygen Sensors

0-100% O2 range

Up to 32 months sensor lifetime

Integral or remote sensor options

Long battery life: up to 18 months of continuous operation for AII-2000 Palm O2

Analytical Industries’ AII-2000 series or Palm O2 handheld oxygen analyzers provide a very easy way to verify oxygen and other medical gases used in medical or veterinary clinics. These FDA approved inexpensive medical gas analyzers use maintenance-free advanced galvanic oxygen sensors and will operate for up to 32 months. Based on decades of experience in the design and manufacture of oxygen instrumentation for respiratory medical devices, both models have been specifically designed for spot checking oxygen levels in anaesthesia, intensive care, incubators or other variants of respiratory or oxygen therapy.

Specification

	AII-2000 A (及 AHC)	AII-2000 M	AII-2000 Palm R	AII-2000 Palm O₂
Measurement range	0-100% oxygen
Accuracy	< ±2% of range at constant conditions
Response time	T90 < 10 seconds
Sensitivity (LDL)	0.1%
Linearity	< 2% of scale
Sensor	AII-11-60 (A model) or AII-11-60-HC (HC model)	AII-11-60	AII-11-75-PO2R
Sensor life at 25ºC (77°F) and 1 atm	60 months in air		32 months in air
Calibration interval	After 8 hours of use
Inlet pressure	Ambient 0.34-2 barg (5-30 psig) with atmospheric vent
Flow rate	0.2-10 l/m (0.4-20 SCFH)
Gas connections	1x16 mm thread or push-in flow diverter with o-ring seal
Display	3½ digit backlit LCD 7 x 3.5cm (2.75 x 1.375"); resolution 0.1		3 digit LCD 2.8 x 1.6cm (1.1 x 0.625"); resolution 0.1
Dimensions	9.1 x 14.9 x4cm (3.6 x 5.9 x 1.6")		6.9 x 10.4 x 3.4cm (2.72" x 4.1" x 1.35")
Weight	280g (10oz)		196g (7oz)
Compensation	Temperature
Alarms	None	User configurable HI & LOW alarms	None
LED indicators	None	Alarm status	None
Storage temperature	0° to 45°C (32°F to 113°F) on intermittent basis		-20° to 60°C (-4°F to 140°F) on intermittent basis
Operating temperature	5° to 45°C (41°F to 113°F)
Humidity	Non-condensing 0-95% RH
Power	2 AA Alkaline batteries; 1,200 hours continuous use		2 AA alkaline batteries; 13,000 hours continuous use
