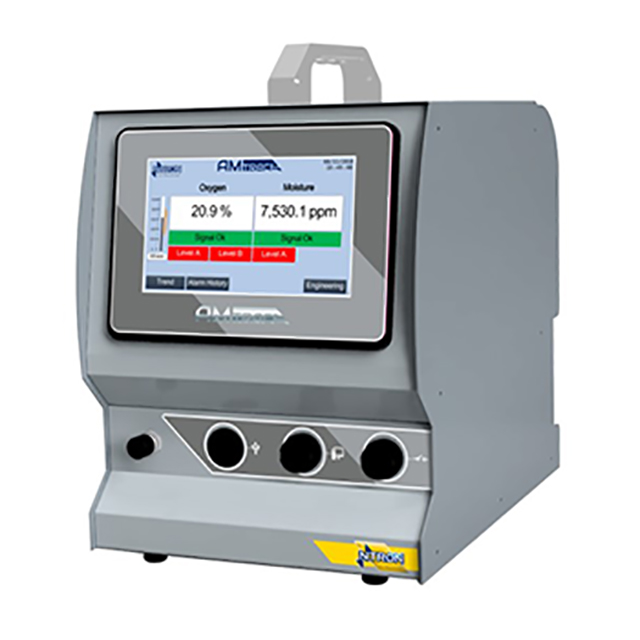

Portable Oxygen and Moisture Analyzer - Ntron AM Trace

Updated:2023-10-20

Brand: PST/Ntron
Model: AM Trace
Product description: AM Trace is a transportable oxygen and moisture analyser designed to measure the internal atmosphere in the build chamber of an Additive Manufacturing Machine. AM Trace has a measurement range of 1ppm
Data download

Feedback
WeChat

QQ

Online Service

product details

Portable Oxygen and Moisture Analyzer - Ntron AM Trace Description：

Datasheet

Designed for Additive Manufacturing Applications

Features

Transportable case with handle

Accurately monitors oxygen and moisture levels in the AM build chamber

User-friendly touch-screen interface includes status notifications

Electronic flow sensor

RS-485 serial communications

USB / Flash drive input

Relay output for Alarm / sounder beacon configuration

Integral sample pump allows you to extract the gas sample from the process.

AM Trace is a transportable oxygen and moisture analyser designed to measure the internal atmosphere in the build chamber of an Additive Manufacturing Machine. AM Trace has a measurement range of 1ppm to 25% oxygen. This sensor is unaffected by hydrocarbons or volatile atmospheres and is specifically designed for low Oxygen measurement (<100 PPM) on Additive Manufacturing Machines.

The AM Trace has a fast response time from 20.9% to low PPM Oxygen. AM Trace also incorporates a moisture sensor which allows measurement of moisture in the range of -60°C to +60°C. With touchscreen technology and front facing inputs / outputs this analyzer can be integrated into any system with ease.

Specifications

Technical Specifications
Measured Gas / Range	1ppm to 25% Oxygen
Measured Moisture Range	-60°C to + 60°C dew point
Response Time (T90)	<10 seconds (oxygen)
Response Time (T95)	5 mins (dry to wet) (moisture)
Repeatability	+/- 0.5% of reading
Moisture Repeatability	0.5°C dew point
Power Requirements	100-240 VAC
Output Signal	4 - 20mA
Sample Flow	50 - 200 sccm (150 sccm recommended rate)
Flow Rate (Moisture)	1 to 5 NI/min mounted in standard sampling block
Display	7” Touchscreen colour display
Relay Output	4 Relay Contacts per Channel (250 VAC @ 5A)
Communications	RS-485
Accuracy	+/- 2% of reading
Moisture Accuracy	+/- 2°C dew point
Temperature Range	5°C to 40°C (Ambient)
Process Connection	1/8“ BSP Input / Exhaust
Dimensions	350mm (D) x 253.4mm (W) x 314mm (H) (excl. handle)
Weight	8.5kg (approx. 19lb)
European Compliance	Complies with EMC Directive 2004/108/EC
