BladeCam2-XHR

Updated:2024-05-23

Brand: DataRay
Model: BladeCam2-XHR
Description: Updated with USB 3.0 connectivity and other improvements, the BladeCam2 offers an enhanced BladeCam beam profiling experience. With ultra-small 3.2 µm pixels providing support for beams as small as 32
Data download

Feedback
WeChat

QQ

Online Service

Product Details

BladeCam2-XHR Description：

Product Manual Datasheet Drawing

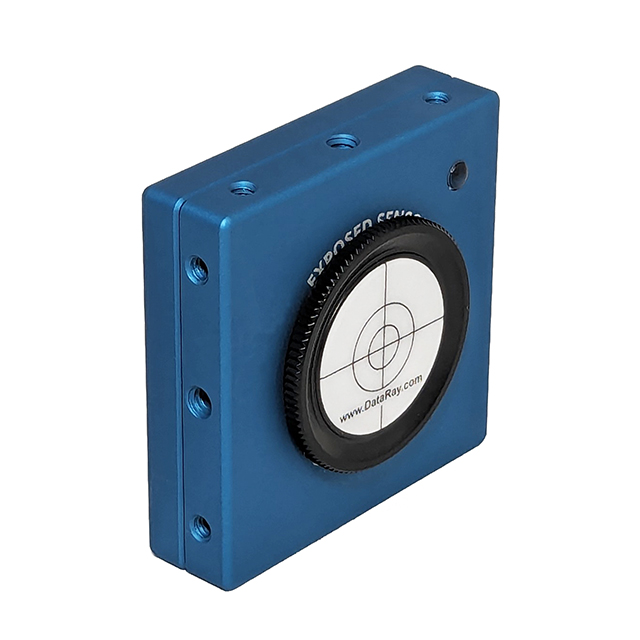

Updated with USB 3.0 connectivity and other improvements, the BladeCam2 offers an enhanced BladeCam beam profiling experience. With ultra-small 3.2 µm pixels providing support for beams as small as 32 µm, the high resolution and highly compact BladeCam2-HR beam profiler has a thickness of only 0.5 in. (12.8 mm) for effortless incorporation into tight optical trains and OEM applications.

Key Features

355 to 1150 nm, standard CMOS detector

UV and 1310 nm options available

3.2 µm pixels, 3.1 MPixel, 2048 x 1536

6 fps @ 2048 x 1526, 16 fps @ 1024 x 1024, 35 fps @ 512 x 512

Port-powered USB 3.0

HyperCal™ – Dynamic Noise and Baseline Correction software

C-mount filters included

1,000:1 Signal to RMS Noise

Profiles CW/Quasi-CW beams

Electronic auto-shutter, 40 µs to 500 ms

10-bit ADC

Parallel capture on multiple cameras

Field-replaceable image sensors

Relative power level display

Window-free sensors standard for no fringing

ISO 11146 M² option – beam propagation analysis, divergence, focus

Example Applications

Tight optical trains

CW/Quasi-CW laser profiling

Field servicing of lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

M² measurement with available M2DU stage

Specification

Wavelength	BladeCam2-XHR/XHR-ND4: 355 to 1150 nm BladeCam2-XHR-1310: 355 to 1350 nm BladeCam2-HR-UV: 190 to 1150 nm
Included Filters	BladeCam2-XHR-ND4: C-mount ND-4 BladeCam2-XHR: C-mount ND-1, ND-2, ND-4 BladeCam2-XHR-1310: C-mount ND-1, ND-2, ND-4 & 1" long pass filter w/ C-mount adapter BladeCam2-XHR-UV: C-mount ND-1, ND-2, ND-4 & 1" absorptive ND-1, ND-2, ND-4 w/ C-mount adapter
Pixel Count, H x V	3.1 Mpixel, 2048 x 1536
Image Area	6.5 x 4.9 mm
Pixel Dimension	3.2 x 3.2 µm
Min. Beam (10 pixels)	~32 µm
Shutter Type	Rolling
Max. Full Frame Rate	≥6 Hz
Max. 'Every Pulse' PRR	N/A
Single Pulse Capture PRR	N/A
Signal to RMS Noise	1,000:1
(Opt./Elec.* dB)	(30/60* dB)
Dynamic Range	44 dB
ADC	10-bit (1,024 levels)
Measurable Sources	CW/Quasi-CW beams

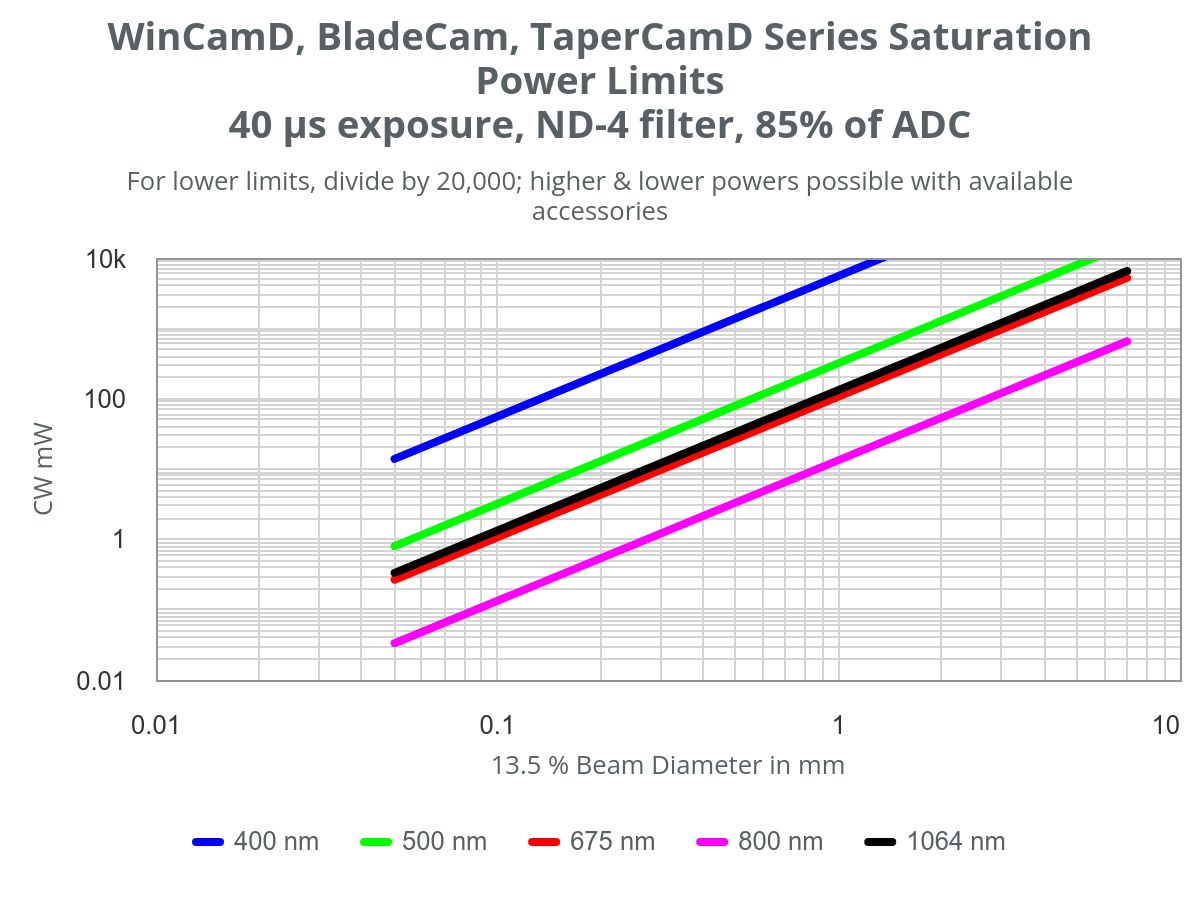

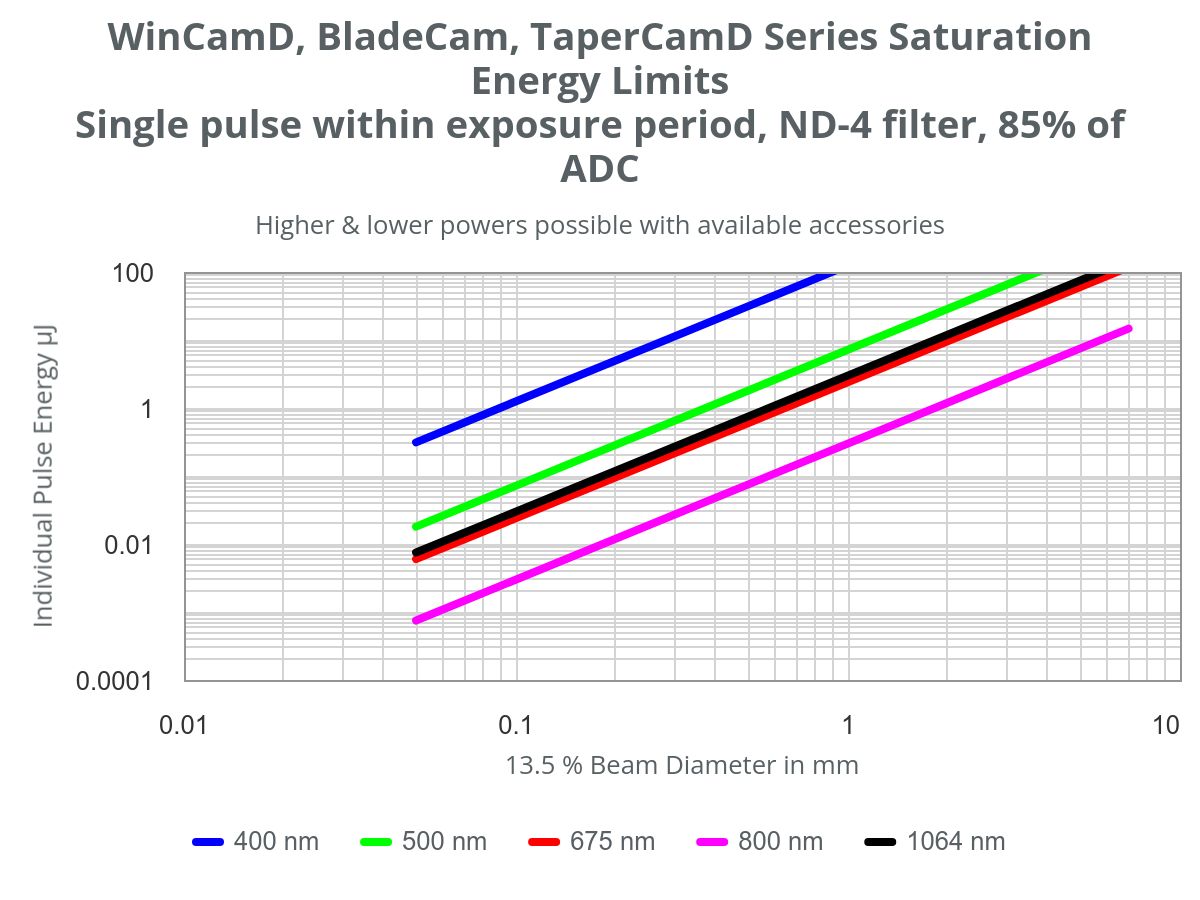

Measured Beam Powers	See Saturation Power Graph in datasheet
Manual Beam Attenuation	Provided filters, other attenuation accessories available
Displayed Profiles	Line, 2D & 3D plots. Normalized or un-normalized. Linear or Logarithmic, Zoom x10 2D, 3D in 10, 32 or max. colors or grayscale Contoured display at 10 and 32 colors
Measured & Displayed Profile Parameters	Raw and smoothed profiles Triangular running average filter up to 10% FWHM
Beam Diameter	Diameter at two user set Clip levels Gaussian & ISO 11146 Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters
Beam Fits	Gaussian & Top Hat profile fit & % fit Equivalent Slit profile
Beam Ellipticity	Major, Minor & Mean diameters. Auto-orientation of axes.
Centroid Position	Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics
Measurement Accuracy (not limited to pixel size)	0.1 µm processing resolution for interpolated diameters. Absolute accuracy is beam profile dependent - ~1 µm accuracy is frequently achievable. Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level).
Processing Options	Image & profile Averaging, 1, 5, 10, 20, Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations
Update Rates	≥9 Hz maximum for full frame, full screen. Higher for small Capture Blocks
Pass/Fail display	On-screen selectable Pass/Fail colors. Ideal for QA & Production.
Log Data and Statistics	Min., Max., Mean, Standard Deviation, to 4096 samples
Relative Power Measurement	Rolling histogram based on user's initial input. Units of mW, µJ, dBm, % or user choice (relative to a reference measurement input)
Fluence	Fluence, within user defined area
Certification	RoHS, WEEE, CE
Multiple Cameras	Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture.
Head Dimensions, Width x Height x Depth	1.8 x 1.8 x 0.5 in. (46.0 x 46.0 x 12.8 mm)
Optical depth from housing/filter to sensor (no window) ±0.2 mm	4.0/ 8.5 mm (verify before purchasing)
Mounting	1/4"-20 holes aligned with sensor center. 4-40 holes on camera rear.
Weight, Camera Head	85 g (3 oz)
Minimum Requirements	Windows 10 64-bit
