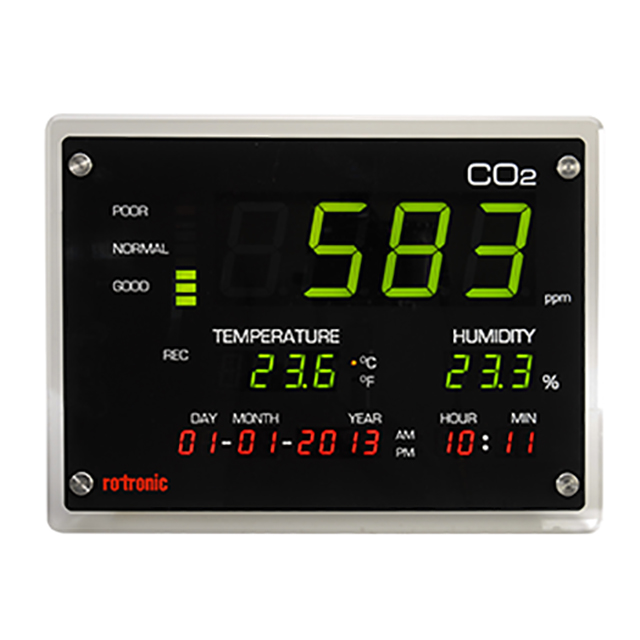

Rotronic CO2 Display for Indoor Air Quality Monitoring

Updated:2023-10-26

Brand: PST/Rotronic
Model: CO2-DISPLAY
Product description: Room / wall panel for monitoring indoor air quality. Measures and records CO2, relative humidity and temperature.
Data download

Feedback
WeChat

QQ

Online Service

Visualising Carbon Dioxide Concentration in Rooms

Features

Benchtop or wall mounting

Measures and records CO2, relative humidity and temperature

Accuracy:  ± 30 ppm, ± 2.5 %RH,  ± 0.3 K

ROTRONIC HYGROMER IN-1 humidity sensor

Up to 40`000 data point memory for CO2, humidity and temperature values

Adjustable, visual CO2 alert indicator

Data download via USB flash drive

Easy to Use, Eye-Catching Visualization

Room / wall panel for monitoring indoor air quality. Measures and records CO2, relative humidity and temperature.

Application

Indoor Air Quality (IAQ) measurements in offices, conference rooms, schools, etc.

Specifications

	CO2-Display	CL11
Parameter / Calculated	CO2, Relative Humidity and Temperature
Typ	Wall	Benchtop
Measuring Range	0….5000 ppm (CO2), 0…50 °C; 0…95 %RH (0…100 % RH CL11)
CO2 Sensor	Infrared (NDIR) with automatic calibration (ABC)
CO2 Accuracy	±30 ppm ±5 % of the measured value
Humidity Sensor	ROTRONIC HYGROMER® IN-1
Humidity Accuracy	±2 %RH @ 25°C
Temperature Sensor	NTC
Temperature Accuracy	±0.3 °K
Power Supply	AC adapter 12 VDC
Battery life
Function		MIN/MAX/AVG
Storage Capacity	19500 values with time stamp, automatic recording ( %RH / °C / ppm )	40000 values with time stamp, automatic recording ( %RH / °C / ppm )
Logg intervall	1 min… 12h 59 Min	1s…4.59 h
Dimension	330 x 250 x 50 mm	157 x 120 x 45 mm
