Comet 1K 7Z02702 Power Puck Laser Sensor

Updated:2023-05-29

Brand: Ophir
Model: Comet 1K
Product description: The Comet 1K is a portable power puck laser sensor with a 50mm aperture. It can measure power from 20W to 1000W by sampling a 10s exposure of laser power. It has the spectrally flat broadband coating
Data download

Feedback
WeChat

QQ

Online Service

product details

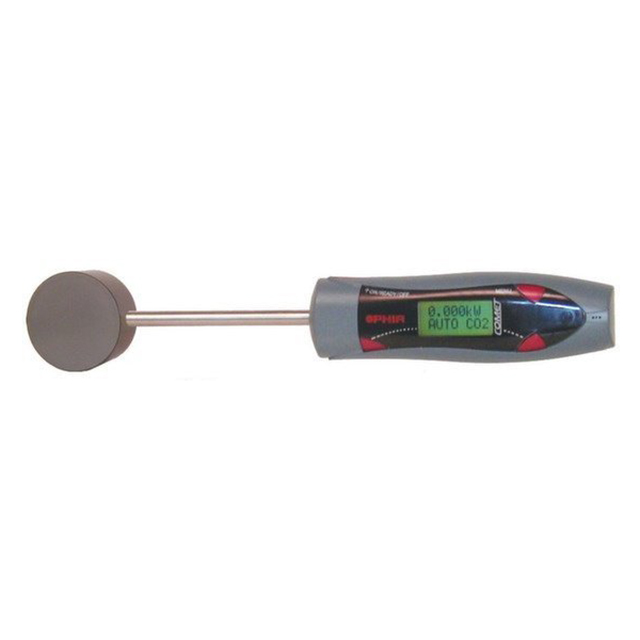

Comet 1K 7Z02702 Power Puck Laser Sensor Description:

The Comet 1K is a portable power puck laser sensor with a 50mm aperture. It can measure power from 20W to 1000W by sampling a 10s exposure of laser power. It has the spectrally flat broadband coating and covers the spectral range from 0.2 to 20µm.

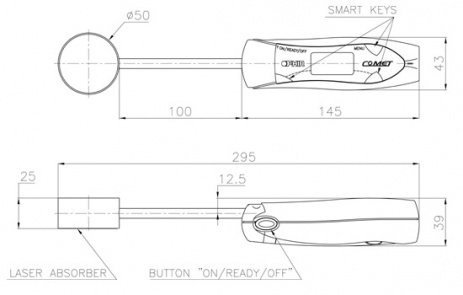

Comet 1K 7Z02702 Power Puck Laser Sensor Drawing：

Comet 1K Drawing

Comet 1K 7Z02702 Power Puck Laser Sensor Specification：

Absorber Type	N.A.
Aperture	Ø50mm
Spectral Range	0.2-20µm
Power Range	20W-1000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	295 L x 25 W x 50 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	4kW/cm²
Response Time	N.A.
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	15J/cm²
Max Average Power	1kW
BeamTrack Functions	N.A.
