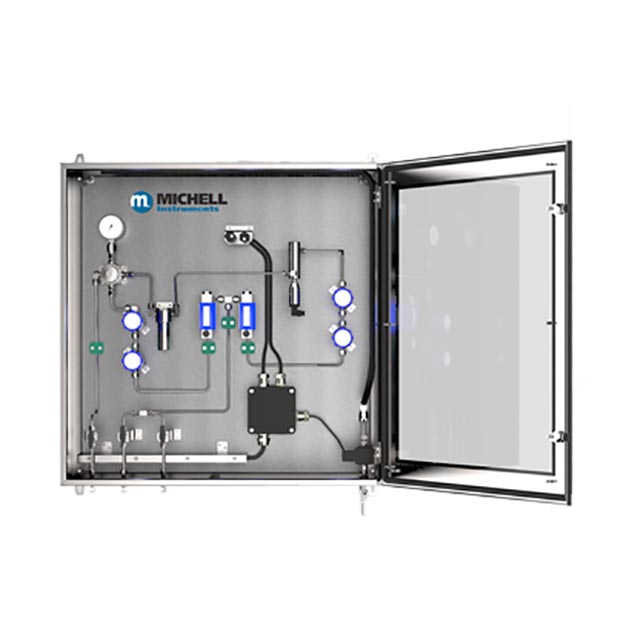

Process Sampling System - Michell ES70

Updated:2023-10-16

Brand: PST/Michell
Model: ES70
Product description: Moisture analyzers are only as reliable as the sample extraction, handling and conditioning techniques used. The ES70 Sampling System range offers a set of configuration options to cover all process m
Data download

Feedback
WeChat

QQ

Online Service

product details

Process Sampling System - Michell ES70 Description：

Product Manual Datasheet

High-Quality Gas Handling for Reliable Moisture Measurement

Features

Indoor panel or outdoor enclosure mounting options

Process connection via 6mm or 1/4” tube fittings

High quality components, stainless steel tubing and fittings

Sample inlet pressure up to 138 barg

Flexible filtration options

Choice of transmitter, flow and pressure control

Comprehensive documentation options with BS EN 10204 3.1 certification and NACE MR0175 available

Moisture analyzers are only as reliable as the sample extraction, handling and conditioning techniques used. The ES70 Sampling System range offers a set of configuration options to cover all process moisture and dew-point application needs, to ensure repeatable, accurate results.

Choices include panel mount or enclosure, type of filtration, upstream and downstream pressure control and flow control.

Specifications

Electrical Specifications
Supply voltage (sensor)	14 to 28 V DC
Supply voltage (sampling system)	240VAC or 110VAC
Operating Temperature
ES70 fitted with monitor	0 to +50°C
ES70 without monitor	-20 to +60°C
Gas Operating Inlet Pressure	138 barg maximum
Gas Flow rate	1 to 5 Nl/min
Liquid Operating Inlet Pressure	50 barg maximum
Liquid Flow rate	Min 0.01 l/min, max 10 l/min 0.1 to 0.3 l/min recommended
Mechanical Specifications
Process connections and materials	Inlet/outlet process connections via 6mm or 1/4” tube fittings, 316 SS
Gas wetted parts	Transmitter sample block, filter housing and fittings, 316 SS
Dimensions	Indoor panel: 750 x 750 x 2mm Outdoor: 800 x 800 x 300mm
Dew Point Measurement Specifications *	See chosen sensor datasheets

*For all other specifications refer to the Easidew/Liquidew/Promet product pages
