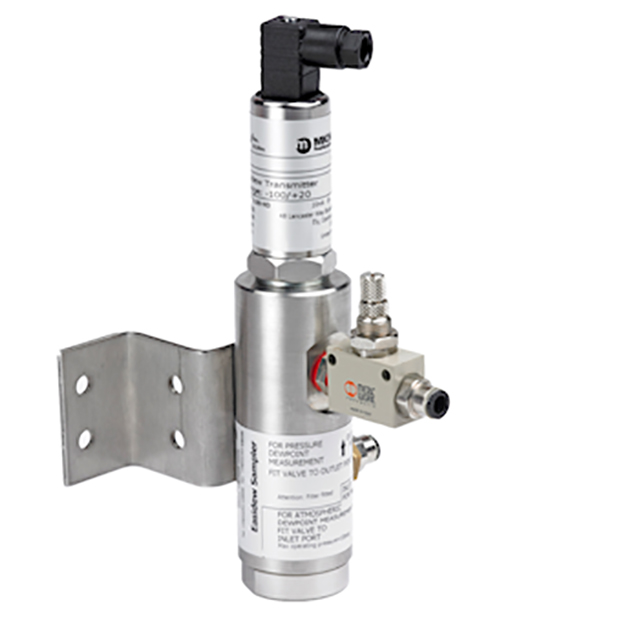

Self-Contained Sampling System - Michell Easidew Sampler

Updated:2023-09-21

Views:1066

Product Details

Self-Contained Sampling System - Michell Easidew Sampler Description:

HP Product Manual LP Product Manual

Low-Cost Gas Sampling with Filtration and Flow Control

Features

Universal configuration for atmospheric or line pressure dew-point measurements

Integral particulate filter

Metering valve for flow control

Single block design for faster measurement response

Gas pressure to 1 MPa (10 barg) with a high-pressure option to 21 MPa (210 barg) available

A low-cost, self-contained sampling system, with filtration and flow control, for measurement of either pressure or atmospheric dew points.

Specification

Gas Flow Rate 1 to 5 Nl/min
Operating Pressure 1 MPa (10 barg) with a high pressure option to 21 MPa (210 barg) available
Particulate Filter 99.5% removal of 0.3 microns
Gas Connections Quick Connect fittings for 6mm O/D plastic tubing or ¼" Swagelok® tube fittings (PTFE or FEP recommended)
Sample Tube Supplied with 0.5m pig-tail vent tube, to prevent back-diffusion
Vacuum Rating Standard push fittings are not vacuum rated
Construction Material Block and Cap: 316 Stainless Steel
Flow Control Block: Aluminium
Couplings: Nickel plated Brass
Sensor Port ⅝” UNF to support all Michell Instruments' Impedance Sensors / Transmitters
Environmental IP66 (NEMA 4)
Operating Temperature -40 to +60°C (or as determined by sensor specification)
Storage Temperature -40 to +70°C, 0-95% RH; non-condensing
Weight 1.1kg (1.3kg with sensor installed)

Suitable Applications

Compressed air dryers

Plastic moulding

Ozone generators

Medical gases

Pneumatics

Breathing air

Welding gases
