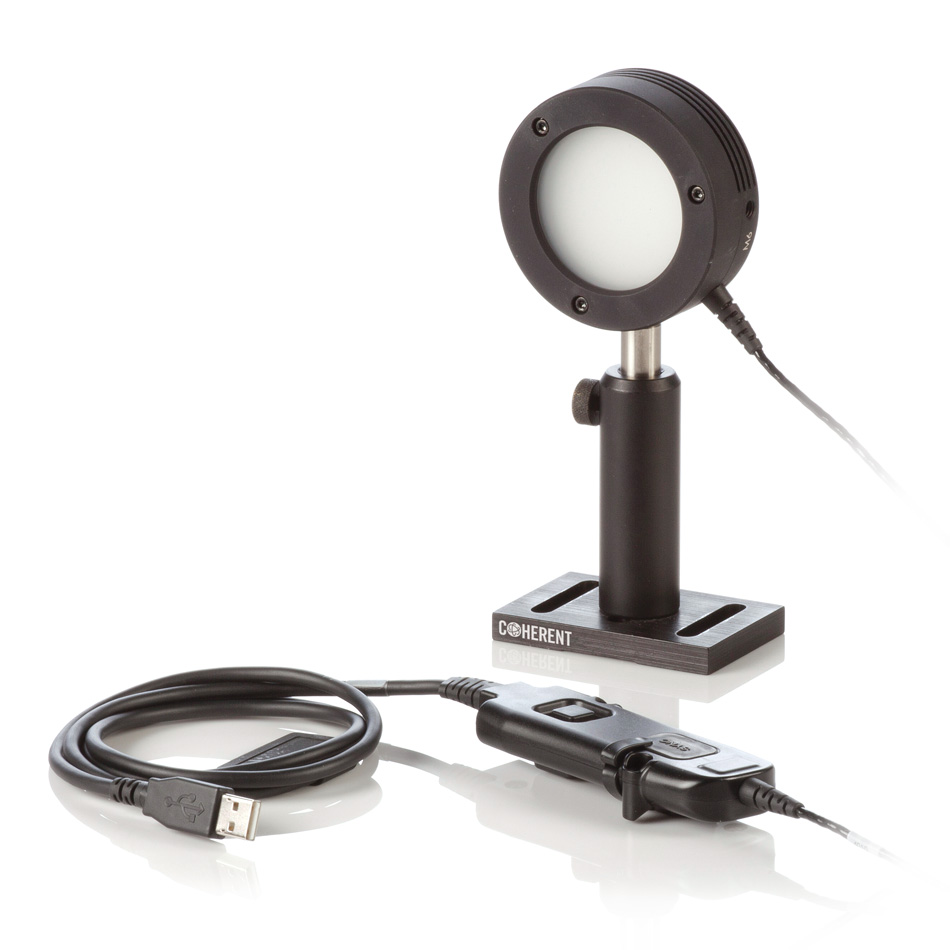

Coherent EnergyMax-RS J-50MB-YAG-1535 Energy Sensor

Updated:2024-11-19

Views:144

  • Brand: Coherent
  • Model: EnergyMax-RS J-50MB-YAG-1535
  • Description: The J-50MB-YAG-1535 energy sensor can handle higher pulse energy and longer laser pulse lengths than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power las
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent EnergyMax-RS J-50MB-YAG-1535 Energy Sensor Description:

Datasheet User's Manual

The J-50MB-YAG-1535 energy sensor can handle higher pulse energy and longer laser pulse lengths than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.

The EnergyMax-RS J-50MB-YAG-1535 energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1151431) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 12 mJ to 15J at up to 10 pps. Direct RS interface.

Key Features:

0.266 to 2.1 µm spectral range

35 mm diameter active area

12 mJ to 15J energy range

10 pps repetition rate operation

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type
RS232
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
12 mJ to 15J
Noise Equivalent Energy
<240 µJ
Maximum Pyroelectric Rep. Rate (pulses per second)
50
Wavelength Range (micrometers)
0.266 to 2.1
Maximum Average Power (watts)
20
Maximum Pulse Width (microseconds)
2000
Maximum Energy Density (millijoules per square centimeter)
14.0 (at 1064 nm, 10 ns); 2.8 (at 532 nm); 0.75 (at 355 nm); 1.0 (at 266 nm)
Diffuser
YAG
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
Maximum Beam Size (millimeters)
35
