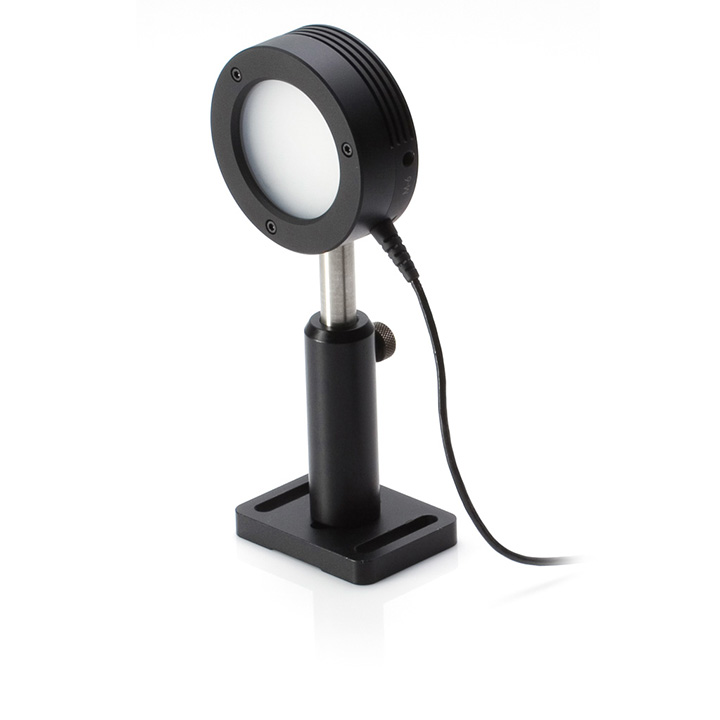

Coherent EnergyMax-RS J-50MT-10KHZ Energy Sensor

Updated:2024-11-19

Brand: Coherent
Model: EnergyMax-RS J-50MT-10KHZ
Description: The EnergyMax-RS J-50MT-10KHZ energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 11055
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-RS J-50MT-10KHZ Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-RS J-50MT-10KHZ energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110574) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 400 µJ - 1J at up to 10000 pps. Direct RS232 interface.

Key Features:

190 nm to 2.1 µm spectral range

50mm diameter active area

400 µJ - 1J energy range

10000 pps repetition rate operation

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Active Area Diameter

50 mm

Detector Coating

Diffuse Metallic

Energy Range

400 µJ to 1J

Wavelength Range

190 nm to 2100 nm

Noise Equivalent Energy

<40 µJ

Maximum Pyroelectric Rep. Rate (pulses per second)

10000

Wavelength Range (micrometers)

0.19 to 2.1

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

1.7

Maximum Energy Density (millijoules per square centimeter)

500 (at 1064 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
