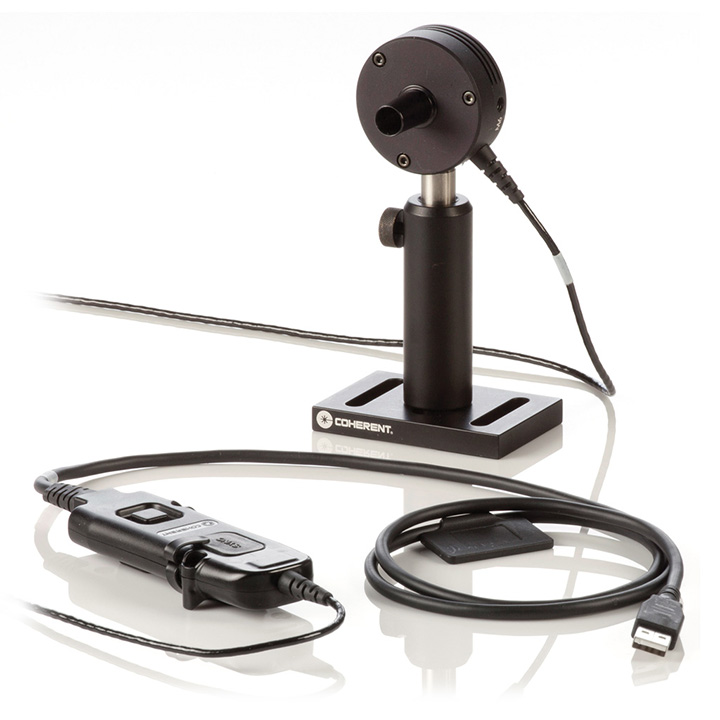

Coherent EnergyMax-USB J-10SI-HE Energy Sensor

Updated:2024-11-19

Brand: Coherent
Model: EnergyMax-USB J-10SI-HE
Description: The EnergyMax-USB J-10Si-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1150146) is available.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-USB J-10SI-HE Energy Sensor Description：

User's Manual

The EnergyMax-USB J-10Si-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1150146) is available.

Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 750 pJ to 775 nJ at up to 10000 pps. Direct USB interface

Key Features:

325 to 900 nm spectral range

10 mm diameter active area

750 pJ to 775 nJ energy range

10000 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Active Area Diameter

10 mm

Detector Coating

Silicon

Energy Range

750 pJ to 775 nJ (at 532 nm)

Wavelength Range

325 nm to 900 nm

Noise Equivalent Energy

<75 pJ (at 532 nm)

Wavelength Range (micrometers)

.325 to .900

Maximum Average Power (watts)

0.06

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

Diffuser

ND2

Calibration Uncertainty (%)(k=2)

±3

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

532

Cable Length (meters)
