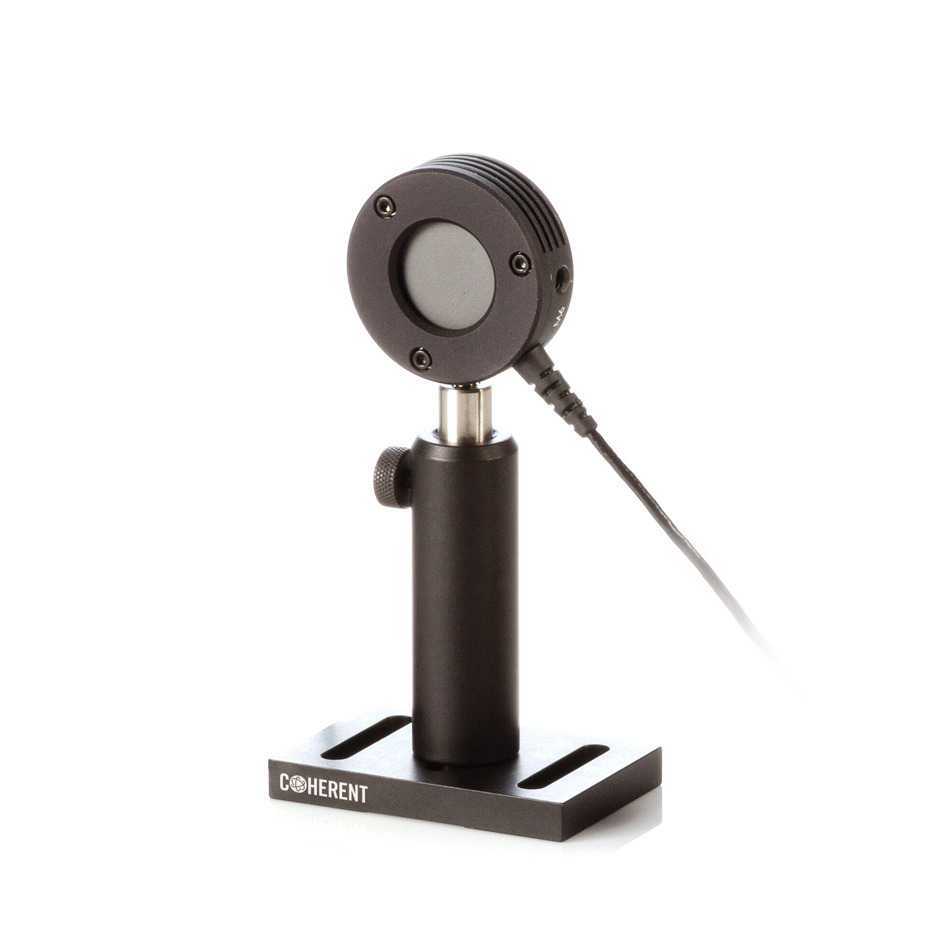

Coherent EnergyMax-USB J-25MB-HE Energy Sensor

Updated:2024-11-19

Brand: Coherent
Model: EnergyMax-USB J-25MB-HE
Description: The EnergyMax-USB J-25MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110746) is available.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-USB J-25MB-HE Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-USB J-25MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110746) is available.

A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 850 µJ to 1J at up to 1000 pps. Direct USB interface.

Key Features:

190 nm to 12 µm spectral range

25 mm diameter active area

850 µJ to 1J energy range

1000 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Active Area Diameter

25 mm

Detector Coating

MaxBlack

Energy Range

850 µJ to 1J

Wavelength Range

190 nm to 12 µm

Noise Equivalent Energy

<85 µJ

Wavelength Range (micrometers)

0.19 to 12

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

500 (at 1064 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
