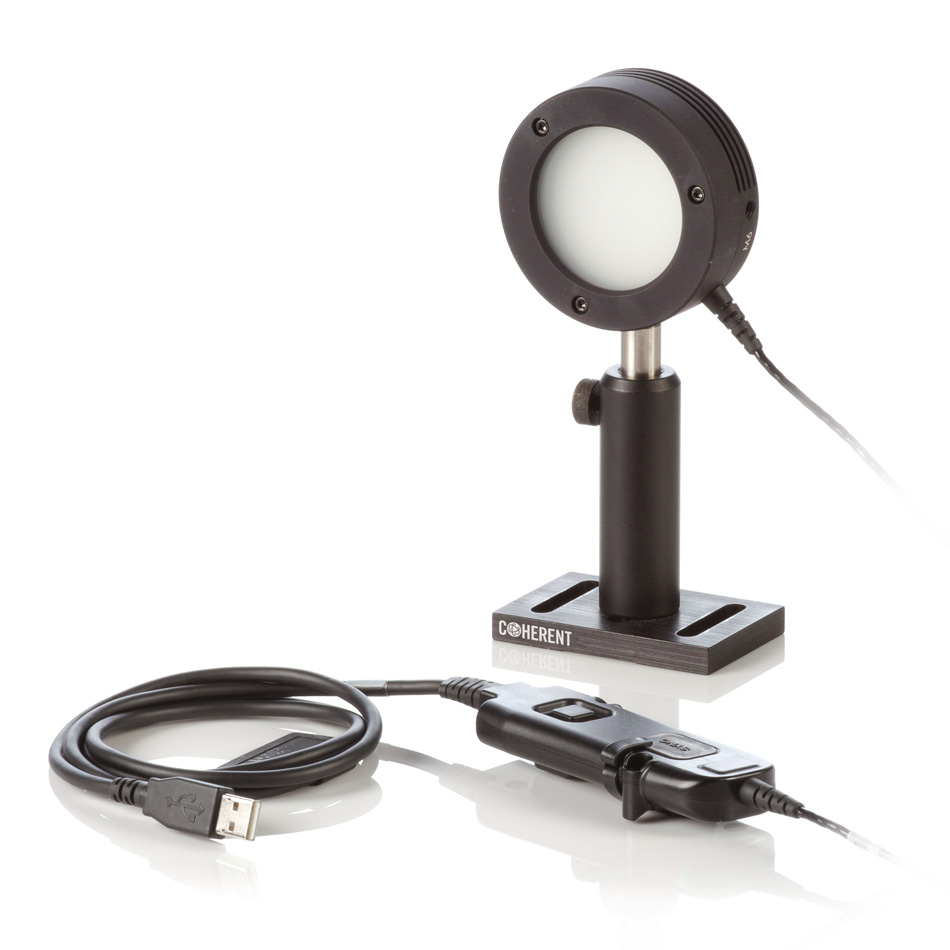

Coherent EnergyMax-USB J-50MUV-248 Energy Sensor

Updated:2024-11-20

Views:170

  • Brand: Coherent
  • Model: EnergyMax-USB J-50MUV-248
  • Description: This J-50MUV-248 energy sensor incorporates the MaxUV coating and a diffuser to increase the maximum energy density and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 n
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent EnergyMax-USB J-50MUV-248 Energy Sensor Description:

Datasheet User's Manual

This J-50MUV-248 energy sensor incorporates the MaxUV coating and a diffuser to increase the maximum energy density and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 248 nm and includes spectral compensation from 193 nm to 266 nm.

The EnergyMax-USB J-50MUV-248 energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110572) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxUV coating and diffuser for measuring laser pulses from 800 µJ to 1J at up to 200 pps. Direct USB interface.

Key Features:

193 to 266 nm spectral range

50 mm active area diameter

800 µJ to 1J energy range

200 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Active Area Diameter
50 mm
Detector Coating
MaxUV
Energy Range
800 µJ to 1J
Wavelength Range
190 nm to 266 nm
Noise Equivalent Energy
<80 µJ
Wavelength Range (micrometers)
0.19 to 0.266
Maximum Average Power (watts)
15
Maximum Pulse Width (microseconds)
86
Maximum Energy Density (millijoules per square centimeter)
200 (at 193 nm, 10 ns)
Diffuser
Yes
Calibration Uncertainty (%)(k=2)
±3
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
193
Cable Length (meters)
3
