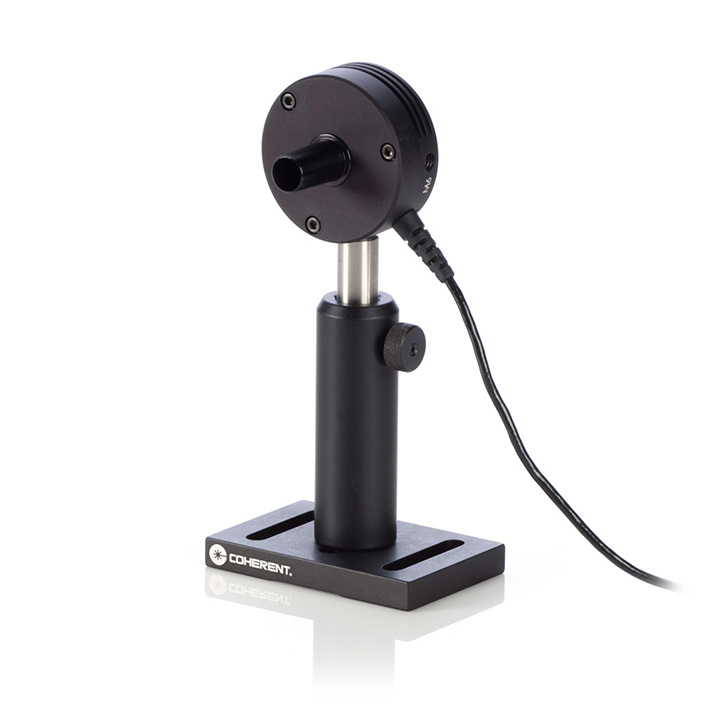

Coherent J-10Ge-LE Quantum Energy Sensor

Updated:2024-11-20

Brand: Coherent
Model: J-10Ge-LE
Description: The J-10Ge-LE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-10Ge-LE Quantum Energy Sensor Description：

Datasheet User's Manual

The J-10Ge-LE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.

A USB-direct (PN 1286950) model is available.

Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 200 pJ to 600 nJ at up to 10000 pps.

Key Features:

800 to 1700 nm spectral range

10 mm diameter active area

200 pJ to 600 nJ energy range

10000 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

10 mm

Energy Range

200 pJ - 600 nJ

Wavelength Range

800 nm to 1700 nm

Detector

Germanium

Noise Equivalent Energy

<8 pJ (at 1064 nm)

Maximum Pyroelectric Rep. Rate (pulses per second)

10000

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Diffuser

Calibration Uncertainty (%)(k=2)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
