F150A-BB-26-PPS P/N7Z07906 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: F150A-BB-26-PPS P/N7Z07906
Description: The BeamTrack series F150A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and positi
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F150A-BB-26-PPS P/N7Z07906 Laser Measurement Sensor Introduction：

The BeamTrack series F150A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 40mW to 150W and energy from 20mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm.The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

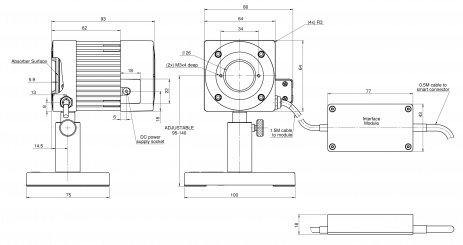

F150A-BB-26-PPS P/N7Z07906 Laser Measurement Sensor Drawing：

F150A-BB-26-PPS Drawing

F150A-BB-26-PPS P/N7Z07906 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø26mm
Spectral Range	0.19-11µm
Power Range	50mW-150W
Energy Range	20mJ-100J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 93 D (mm)
Max Pulse Energy	100J
Max Average Power Density	12kW/cm²
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	150W
BeamTrack Functions	Power/Energy/Position/Size
