FL250A-BB-35 P/N7Z02728 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: FL250A-BB-35
Description: The FL250A-BB-35 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 35mm aperture. It can measure power from 150mW to 250W and energy from 50mJ to 300J. It has the sp
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FL250A-BB-35 P/N7Z02728 Laser Measurement Sensor Introduction：

The FL250A-BB-35 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 35mm aperture. It can measure power from 150mW to 250W and energy from 50mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

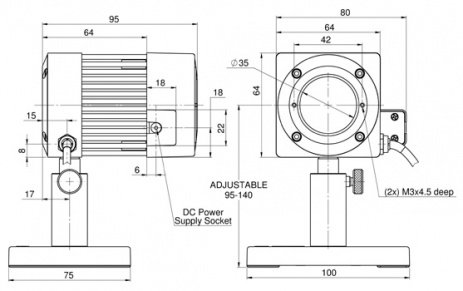

FL250A-BB-35 P/N7Z02728 Laser Measurement Sensor Drawing：

FL250A-BB-35 Drawing

FL250A-BB-35 P/N7Z02728 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø35mm
Spectral Range	0.19-20µm
Power Range	150mW-250W
Energy Range	50mJ-300J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 95 D (mm)
Max Pulse Energy	300J
Max Average Power Density	10kW/cm²
Response Time	2 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	250W
BeamTrack Functions	N.A.
