F150A-BB-26 P/N7Z07120 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: F150A-BB-26
Description: The F150A-BB-26 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 26mm aperture. It can measure power from 50mW to 150W and energy from 20mJ to 100J. It has the spec
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F150A-BB-26 P/N7Z07120 Laser Measurement Sensor Introduction：

The F150A-BB-26 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 26mm aperture. It can measure power from 50mW to 150W and energy from 20mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

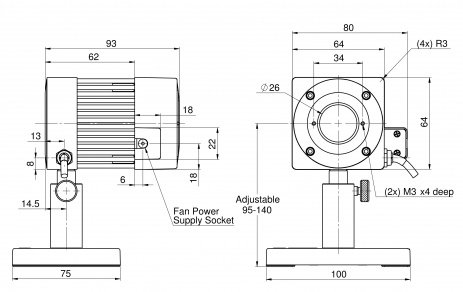

F150A-BB-26 P/N7Z07120 Laser Measurement Sensor Drawing：

F150A-BB-26 Drawing

F150A-BB-26 P/N7Z07120 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø26mm
Spectral Range	0.19-11µm
Power Range	50mW-150W
Energy Range	20mJ-100J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 93 D (mm)
Max Pulse Energy	100J
Max Average Power Density	12kW/cm²
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	150W
BeamTrack Functions	N.A.
