Safe Area Gas Detectors for Toxic Gases FGD14

Updated:2023-10-27

Brand: PST/Status Scientific
Model: SF82 Online
Description: The FGD14 series are stand-alone gas detectors with a front panel display of the gas level. The detectors contain 2 control relays that can be activated via user definable alarm set points; the relay
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Safe Area Gas Detectors for Toxic Gases FGD14 Description：

Datasheet

Toxic Gas Detection Mains or DC Powered

Features

Two stage alarm relays

Plug-in sensor

Remote audible/visual indicator unit

Protection to IP66 / IP65

Mains and dc powered versions available

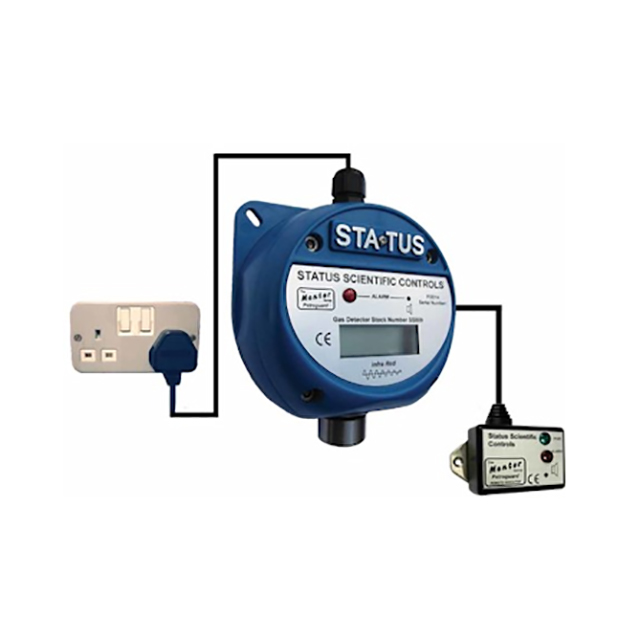

The FGD14 series are stand-alone gas detectors with a front panel display of the gas level. The detectors contain 2 control relays that can be activated via user definable alarm set points; the relay contacts can then be used to control external equipment.

An audible/visual remote unit is also provided with the detector. Typical applications include water purification processes, food preparation and/or storage, car parks, swimming pools and medical applications.

Models are available for powering from either:-

A mains supply of between 85 and 265 volts ac

A DC power supply from 9 to 30 volts

Specifications

Material	Bayblend (ABS and Polycarbonate blending)
Cable entries	1 x M20 or ½” NPT or ¾” NPT (for mains input) 1 x M12 (for connection to Remote Unit)
Weights	FGD14 (excluding weatherguard) – 900grams Weatherguard – 225 grams
Gas Types	Oxygen Toxic
Supply voltage	Mains Version - 85 to 265 volts ac, 47 to 440Hz DC Version - 8 to 24 volts dc
Alarm set points	2 user adjustable set points – adjustable ranges dependent on gas type
Alarm relay outputs	Voltage free, single pole change-over contacts. User selectable for either normally energised or normally de-energised operation
Alarm contact rating	1A, 30Vd.c. non-inductive load
Sensor Types	NDIR Infrared or Electrochemical
Visual alarm indication	Flashing red LED on front panel and on remote indicator unit
Audible alarm indication	Intermittent alarm tone on front panel and on remote indicator unit
Sensor types	NDIR Infrared or Electrochemical
Measurement range	Dependent upon sensor type
Response time	Sensor response times vary according to the sensor type.
IP Rating	Enclosure IP66, Sensor IP65
Operating temperature	- 10 to +40 ℃
Storage temperature	- 20 to +50 ℃
Humidity Range	Oxygen - 0 to 99% RH non-condensing Toxic - 15 to 95% RH non-condensing Infrared – 0 to 95% RH non-condensing
Operating Pressure	Ambient + or - 10%
