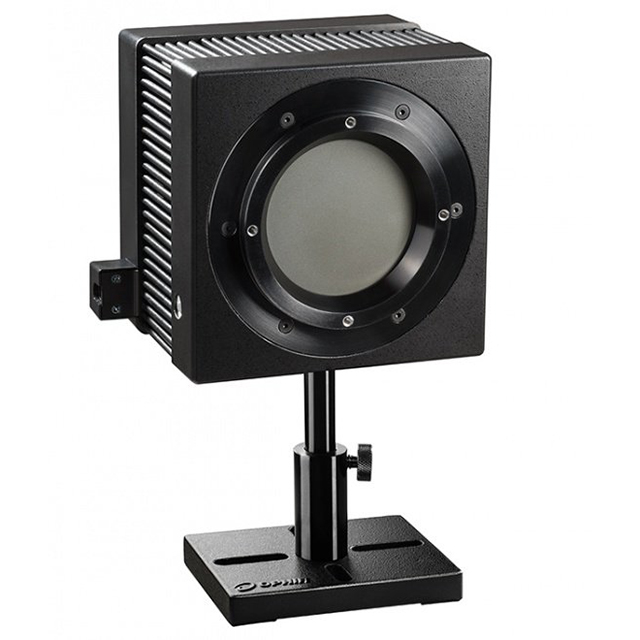

FL1100A-BB-65 P/N7Z02761 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: FL1100A-BB-65
Description: The FL1100A-BB-65 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 65mm aperture. It can measure power from 5W to 1100W and energy from 600mJ to 600J. It has the sp
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FL1100A-BB-65 P/N7Z02761 Laser Measurement Sensor Introduction：

The FL1100A-BB-65 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 65mm aperture. It can measure power from 5W to 1100W and energy from 600mJ to 600J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

FL1100A-BB-65 P/N7Z02761 Laser Measurement Sensor Drawing：

FL1100A-BB-65 Drawing

FL1100A-BB-65 P/N7Z02761 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø65mm
Spectral Range	0.19-11µm
Power Range	5W-1100W
Energy Range	600mJ-600J
Backscattered Power	N.A.
Dimensions	128 L x 128 W x 129 D (mm)
Max Pulse Energy	600J
Max Average Power Density	5.5kW/cm²
Response Time	4 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	1100W
BeamTrack Functions	N.A.
