FL600A-LP2-65 P/N7Z02779 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: FL600A-LP2-65
Description: The FL600A-LP2-65 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 65mm aperture and can measure power from 5W to 600W and energy fr
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FL600A-LP2-65 P/N7Z02779 Laser Measurement Sensor Introduction：

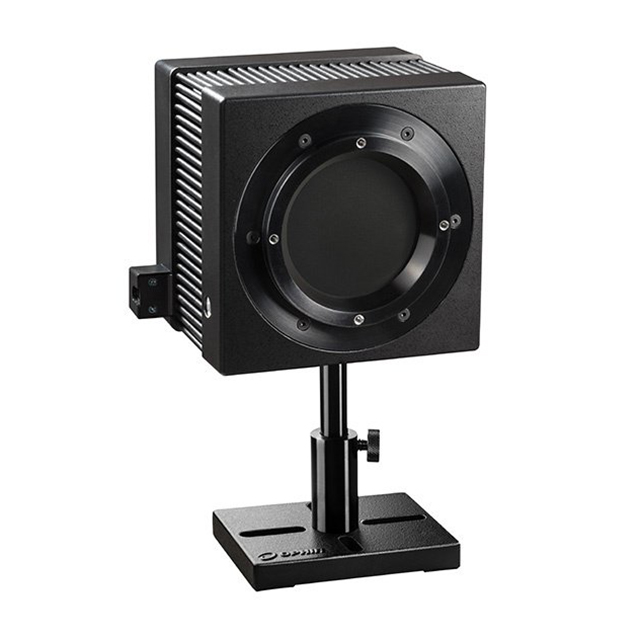

The FL600A-LP2-65 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 65mm aperture and can measure power from 5W to 600W and energy from 600mJ to 600J. Its high damage threshold LP2 absorber covers the spectral range from 0.35 to 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

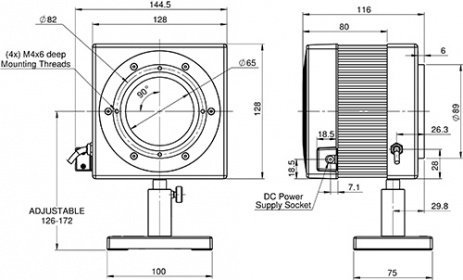

FL600A-LP2-65 P/N7Z02779 Laser Measurement Sensor Drawing：

FL600A-LP2-65 Drawing

FL600A-LP2-65 P/N7Z02779 Laser Measurement Sensor Specification：

Absorber Type	LP2
Aperture	Ø65mm
Spectral Range	0.35 - 2.2µm
Power Range	5W-600W
Energy Range	600mJ-600J
Backscattered Power	N.A.
Dimensions	128 L x 128 W x 116 D (mm)
Max Pulse Energy	600J
Max Average Power Density	11kW/cm²
Response Time	4 s
Max Energy Density (for <100ns)	0.1J/cm²
Max Energy Density (for 2ms)	130J/cm²
Max Average Power	600W
BeamTrack Functions	N.A.
