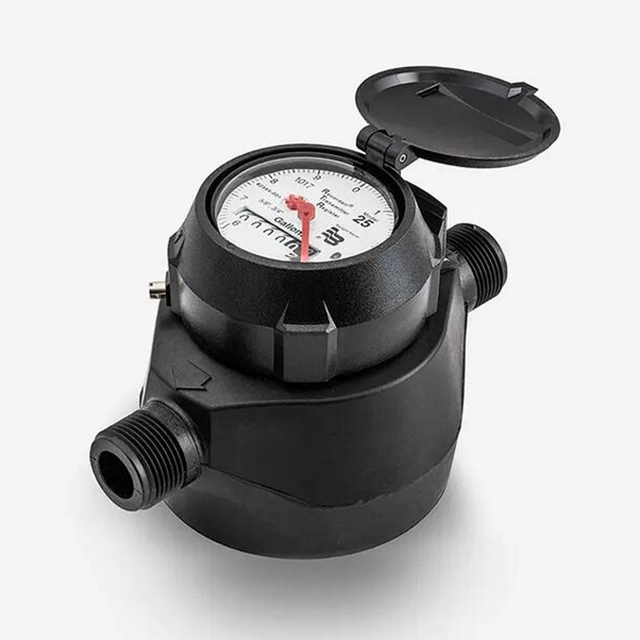

FM-25 Flow Meter (5/8 in x 3/4 in)

Updated:2023-06-16

Brand: METER
Model: FM-25
Product description: METER’s new flow meter offerings combine the accuracy of positive displacement meters with the reliability and economy of nutating disc technology. Constructed out of engineered polymer, our flow mete
Data download

Feedback
WeChat

QQ

Online Service

product details

FM-25 Flow Meter (5/8 in x 3/4 in) Description：

METER’s new flow meter offerings combine the accuracy of positive displacement meters with the reliability and economy of nutating disc technology. Constructed out of engineered polymer, our flow meters are user serviceable and certified to NSF/ANSI Standards 61 and 372. The meters include a magnetically driven register, a pulse transmitter for digital output (no power required), and meter connection fittings. These meters offer minimal pressure loss making them ideal for retrofitting existing irrigation systems.

FM-25 Flow Meter (5/8 in x 3/4 in) Specifications：

Typical operating range	0.5 to 25 gpm
Low flow	(Min. 98.5%): 0.25 gpm
Maximum continuous operation	15 gpm
Pressure loss at maximum continuous operation	2.8 psi
Maximum operating temperature	26 °C
Maximum operating pressure	150 psig
Meter connection tailpiece thread	3/4″ male NPT
Pulse transmitter resolution	1 pulse = 1 gallon
