PS-1 Irrigation Pressure Switch

Updated:2023-06-16

Brand: METER
Model: PS-1
Product description: The PS-1 Irrigation Pressure Switch adds irrigation water on/off data into the soil moisture data set. On/off data is a critical parameter to add to your system when using soil moisture sensors to mon
Data download

Feedback
WeChat

QQ

Online Service

product details

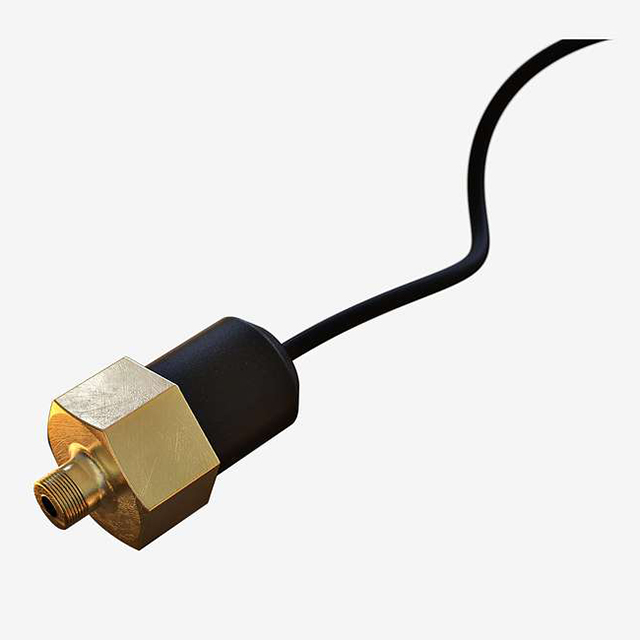

PS-1 Irrigation Pressure Switch Description：

User's Guide

The PS-1 Irrigation Pressure Switch adds irrigation water on/off data into the soil moisture data set. On/off data is a critical parameter to add to your system when using soil moisture sensors to monitor irrigation because it enables you to know your irrigation times.

The PS-1 registers ON at 5 PSI (±1.0 PSI). Because the sensor must be plumbed into the irrigation line, your data logger should be located where this can be done conveniently and cleanly.

PS-1 Irrigation Pressure Switch Specifications：

Set Point	5 psi (± 1.0 psi)
Maximum Pressure	250 psi
Proof Pressure	750 psi
Media Connection	1/8-in NPT male brass
Enclosure Rating	NEMA 4, 13
Diaphragm Material	Buna-N
Electrical Connection	3.5 mm connector
Cable Length	5 m
Data Logger Compatibility	METER ZL6, EM60 series, or EM50 series loggers
Accessories	Bushing, 1/8-in NPT female x 1/4-in NPT male, brass
