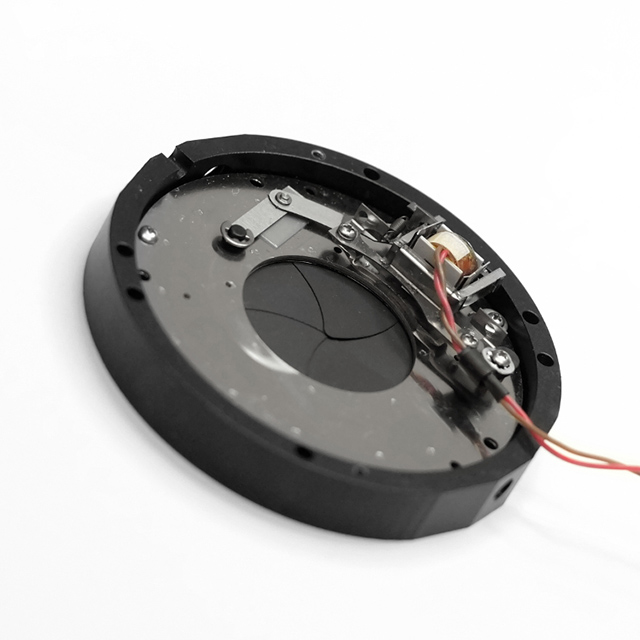

Uniblitz FS25 25mm Optical Shutter

Uniblitz FS25 25mm Optical Shutter Description：

Datasheet

The Uniblitz FS series shutters are designed and optimized to operate directly from +5VDC and do not require a separate driver. Removing the +5VDC (0VDC) closes these shutters. A simple control circuit can be used to operate these shutter devices from a TTL trigger pulse. This control can be also accomplished with our VLM1 interface module. This low-cost innovation provides the reliability of Uniblitz shutters (typical lifetime >1 million cycles) at a single operating voltage.

Key Features

25mm aperture

Slim, small form-factor

Default closed operation, +5VDC opens the shutter, 0VDC closes the shutter

RoHS Compliant

Transfer time on opening: 9.0 milliseconds

Total opening time: 16.0 milliseconds

Black carbon impregnated plastic (C-PET) shutter blades (five) – Blade surface can handle up to 100°C and laser power up to 50 mW/mm2

Default closed operation, +5VDC opens the shutter, 0VDC closes the shutter

Device operating temperature range: -40°C to +65°C

Electronic synchronization available

Black anodized aluminum mount (included) provides multiple mounting options

Multiple housing options available – Check out the FS Series Optional Features document for more information.
