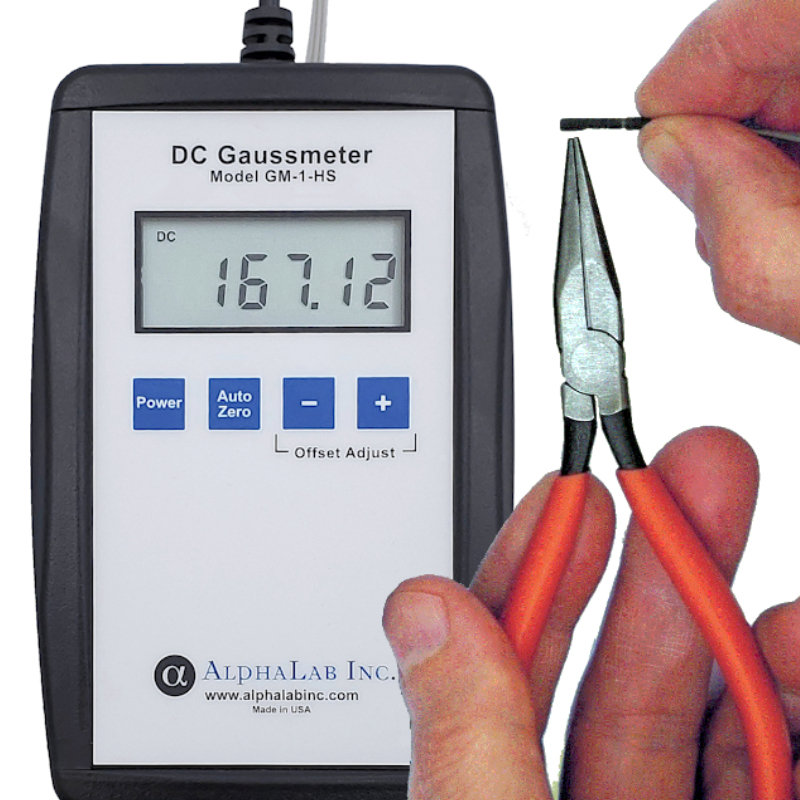

DC Gaussmeter Model GM1-HS

DC Gaussmeter Model GM1-HS Description：

The Model GM1-HS measures the strength and polarity of magnetic fields up to 799.99 gauss. The thin sensor is at the end of a 100 cm flexible cable. The sensor tip is also flexible and can be bent for a variety of situations. The sensor can be held against the surface of a steel part to check for residual magnetism, or it can be bent into an “L” shape to measure inside a DC Solenoid. This meter has a resolution of 0.01 gauss (1/50 of the Earth’s typical field) which is finer resolution than the Model GM1-ST. It is also used to map fields from large magnets (If fields are over 800 gauss, use the Model GM1-ST). The meter has immediate turn-on and updates 4 times a second. There is no setup required, making this the fastest gaussmeter available.

Features：

High dynamic range and sensitivity: reads up to 799.99 gauss with 0.01 gauss resolution including polarity

Instant on, updates four times a second, with no setup or initial calibration required

Auto-Zero (subtracts the present field from subsequent readings); also a fine offset control

Offset range is the full ± 799.99 gauss

1% accuracy at room temperature

Flexible probe and battery are included

CE Compliant

Certificate of NIST traceability included

Detachable Rubber Boot Included

Applications：

Makes detailed measurement of residual magnetism in metal parts.

Use to map field near a magnet, such as the 5 gauss line around an MRI machine.

Detect ambient field direction and strength, such as Earth Field.

1-axis DC Gaussmeter GM1-HS Specification：

Rubber Boot for GM1-HS：

Removable rubber boot with foot that turns down compatible with DC Gauss meter model GM1-HS.

Note: image is of a GM1-ST inside a boot. The meter is not included.
