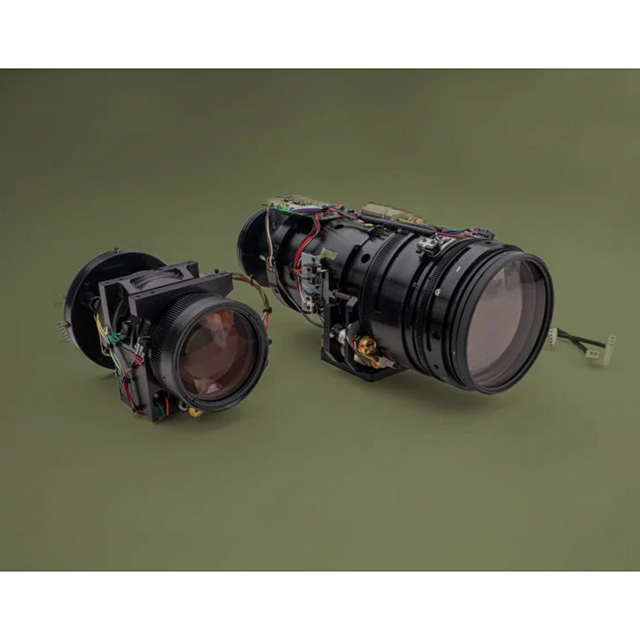

Torrent Photonics Graflex Motorized Zoom Lens

Updated:2024-12-27

Brand: Torrent Photonics
Model: Graflex
Description: Graflex motorized zoom lenses zero in on performance, reliability, and durability for short, medium, and long-range systems, without sacrificing accuracy.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Torrent Photonics Graflex Motorized Zoom Lens Description：

Graflex motorized zoom lenses zero in on performance, reliability, and durability for short, medium, and long-range systems, without sacrificing accuracy.

Superb Transmittance: Excellent boresight retention and image quality

Inherently Rugged: Performance-tested in debilitating conditions at every design stage; designed with all metal gears

Uniquely Customizable: Brackets, extreme temperature gear motors, and more.

Motorized Continuous Zoom & Modular Lenses

9x to 35x Zoom Ratio

High resolution, accuracy, and repeatability DRI out to 25km

Ruggedized

Withstands extreme vibration, shock, operating, and storage temperatures

Enhanced Thermal Stability

MLD-STD-810 tested, Analog Serial Data control

Retain Boresight Integrity

For accurate precision and alignment

Options & Upgrades

MTF testing, BCD, Electronics, Extreme Temperature Gear Motors

Properties

DIS-III Digital Lens Control System with Serial Interface and Ethernet

Fully Programmable ZHS-II Instrument Heat System

Wide-Temperature-Range Gear Motors

Open and Closed-Loop Electronics

Boresight Compensation Devices (BCD)

Optical Testing and Lens Analysis

CFE8 Carbon Fiber Lens Enclosures for Extreme Length and Low Weight

Custom Interface Brackets

Standard Environmental

Operating Temperature: The zoom lens will operate after having been exposed and thermally stabilized to any temperature within the range of -30°C to +70°C

Storage/Transit Temperature: The zoom lens will not be damaged after having been exposed and thermally stabilized to any temperature within the range of -40°C to +75°C

Shock: The zoom lens will not be damaged while subjected to three shocks of 7.5g for 11ms saw tooth on each axis, in both directions (18 pulses total)

Vibration: The zoom lens will operate and not suffer damage when subjected to axial vibration (not angular) or 0.1gRMS within the frequency range of 10-150 Hz

Standard Electrical, Control, and Feedback

Iris:	8-16Vdc @ 30mA, 0.4V to 1.0V (Peak to Peak)
Zoom/Focus:	6-12Vdc @ 60mA
AI PCB	3.0Vdc @ 21mA
Position:	Potentiometers at Zoom and Focus
Iris Control:	Auto
Control:	Analog

Detail Data

						HFOV (Degrees)	A	B	C	D	E
Ratio	Part Number	Focal Length	Aperture	CCD	Wide	Tele	Length Max (mm)	Width (mm)	Height (mm)	Objective OD(mm)	Filter Thread	Weight (Kg)
9X	9X121	12.1 mm - 120.0 mm	f 1.80	1/2"	29.6	3.06	127.6	70.00	79.50	65.00	M62 x.75	0.575
				1/3"	22.4	2.29
	9X182	18.2 mm - 180.0 mm	f 2.7	2/3"	27.2	2.8	132.9					0.612
				1/2"	19.9	2.04
				1/3"	15.00	1.53
	9X242	24.2 mm - 240.0 mm	f 3.6	1"	30.5	3.15	134.1					0.623
				2/3"	20.6	2.1
				1/2"	15.1	1.23
				1/3"	11.3	1.15
12X	12X150	15.0 mm - 180.0 mm	f 1.9	1"	47.5	4.2	233.5	137.1	134.1	111.00	M107x.75	3.11
				2/3"	32.7	2.8
				1/2"	24.1	2.04
				1/3"	18.2	1.53
	12X225	22.5 mm - 270.00 mm	f 2.9	1"	32.7	2.8	238.8					3.147
				2/3"	22.1	1.87
				1/2"	16.2	1.36
				1/3"	12.2	1.02
	12X300	30.0 mm - 360.0 mm	f 3.8	1"	24.8	2.1	239.9					3.158
				2/3"	16.7	1.4
				1/2"	12.2	1.02
				1/3"	9.2	0.76
20X	20XA600	6.0 mm - 121.0 mm	f 1.6	2/3"	72.5	4.16	126.58	70.10	79.50	65.10	M62x.75	0.575
				1/2"	56.1	3.03
				1/3"	43.6	2.27
	20XA900	9.0 mm - 180.0 mm	f 2.4	2/3"	52.1	2.8	133.58					0.614
				1/2"	29.1	2.04
				1/3"	29.9	1.53
	20XA120	12.0 mm - 242.0 mm	f 3.2	2/3"	40.3	2.08	134.76					0.612
				1/2"	29.9	1.51
				1/3"	22.6	1.14
20X	20XB150	15.0 mm - 300.0 mm	f 3.6	1/2"	24.1	1.22	156.01	66.01	70.01	59.01	M62 x .75	0.8
				1/3"	18.2	0.92
	20XB300	30.0 mm - 600.0 mm	f 7.2	2/3"	16.7	0.84	162.5					0.848
				1/2"	12.2	0.61
				1/3"	9.1	0.46
28X	28X940	9.4 mm - 255.0 mm	f 3.5	1/2"	37.6	1.44	224.00	88.00	90.50	80.00	M77x.75	1.44
				1/3"	28.6	1.08
	28X141	14.1 mm - 382.50 mm	f 5.25	2/3"	34.7	1.32	229.30					1.479
				1/2"	25.6	0.96
				1/3"	19.3	0.72
	28X189	18.9 mm - 510.00 mm	f 7.0	1"	38.5	1.48	230.50					1.477
				2/3"	26.2	0.99
				1/2"	19.2	0.72
				1/3"	14.5	0.54
30X	30X102	10.2 mm - 310.0 mm	f 1.5	1/2"	34.8	1.18	244.5	100.00	111.00	90.00	M86x1	1.95
				1/3"	26.5	0.89
	30X153	15.3 mm - 460.0 mm	f 2.3	2/3"	32.1	1.1	251.5					1.989
				1/2"	23.6	0.8
				1/3"	17.8	0.6
	30X204	20.4 mm - 620.0 mm	f 3.0	1"	35.8	1.22	255.9					1.987
				2/3"	24.3	0.81
				1/2"	17.8	0.59
				1/3"	13.4	0.44
32X	32XA156	15.6mm - 500.0mm	f3.0	1/2"	23.4	0.74	247.6				M95 x 1	2.46
				1/3"	17.5	0.55
	32XA312	31.2mm - 1000.0mm	f6.0	2/3"	16.1	0.51	254.1					2.471
				1/2"	11.7	0.37
				1/3"	8.8	0.28
34X	34X102	10.2 mm - 350.0 mm	f 1.5	1/2"	54.8	1.05	247.6	100.00	111.00	90.00	M86x1	1.95
				1/3"	26.5	0.8
	34X153	15.3 mm - 520.0 mm	f 2.25	2/3"	32.1	0.97	252.9					1.989
				1/2"	23.6	0.7
				1/3"	17.8	0.53
	34X204	20.4 mm - 700.0 mm	f 3.0	1"	35.8	1.08	254.1					1.987
				2/3"	24.3	0.72
				1/2"	17.8	0.52
				1/3"	13.4	0.39
59X	59X130	13.0 mm - 775.0 mm	f 3.5	1/2"	27.7	0.52	367.5	135.00	135.00	98mm	M107x.75	5.32
				1/3"	20.9	0.36
	59X195	19.5 mm - 1162.0 mm	f 5.0	2/3"	25.4	0.43	372.8					5.359
				1/2"	18.6	0.32
				1/3"	14.00	0.24
	59X260	26.0 mm - 1555.0 mm	f 7.0	1"	28.40	0.49	374.01					5.357
				2/3"	19.20	0.32
				1/2"	14.00	0.24
				1/3"	10.60	0.18
63X	63X163	16.3 mm - 1028.0mm	f 2.8	1/2"	22.2	0.36	381.7	127.01	127.01	120.01	M116 x 1	4.7
				1/3"	16.7	0.27
	63X244	24.5 mm - 1542.0 mm	f 4.2	2/3"	20.4	0.33	387.01					4.737
				1/2"	14.9	0.24
				1/3"	11.2	0.18
	63X326	32.6 mm - 2056.0 mm	f 5.6	2/3"	15.4	0.25	388.2					4.748
				1/2"	11.21	0.18
				1/3"	8.42	0.14
